8.51MP 20x Optical Zoom 4k Ultra HD Drone Camera EO + IR Dual-Sensor Object Tracking

Brand Name:	GS
Model Number:	Q20KTIR
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100

Detail Information

Product Description

Detail Information

Imager Sensor:

Tracking Gimbal Camera Imager Sensor 1 / 2.5" SONY CMOS

Lens:

20x Optical Zoom

Total Pixel:

8.51MP

Thermal Imager:

640*480, 25mm Lens, 25Hz, 17μm

Object Tracking:

√

Working Voltage:

4S~6S

Output:

Micro HDMI / IP

Control Method:

UART / PWM / PPM / S.BUS / TCP / UDP

Local Storage:

SD Card Up To 128G (4K &1080p Optional)

N.W:

899g

Dimension:

118.7*132.2*183.2mm

Packaging Details:

118.7*132.2*183.2mm

Highlight:

20x 4k Ultra HD Drone Camera

4k Ultra HD Drone Camera 8.51MP

8.51MP 4k fpv drone camera

Product Description

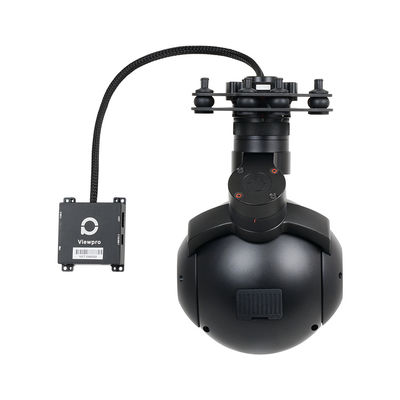

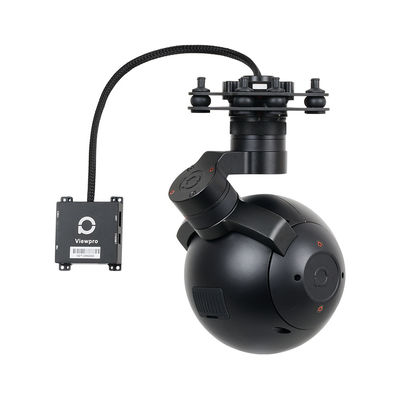

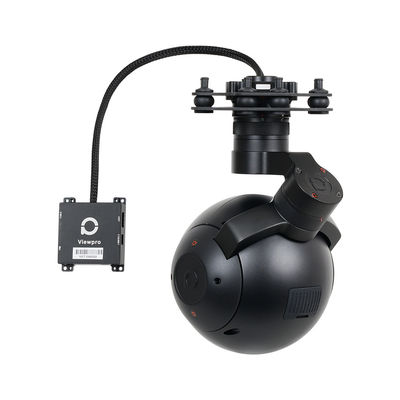

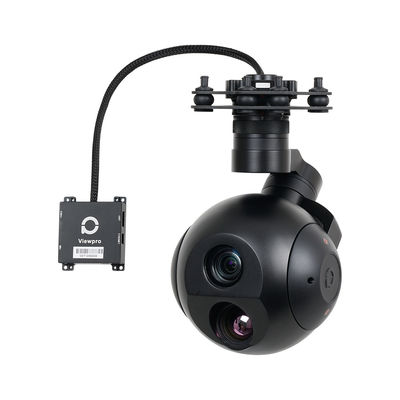

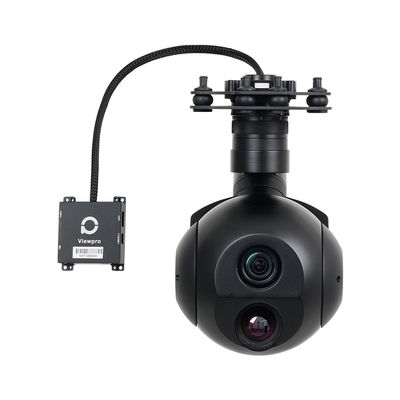

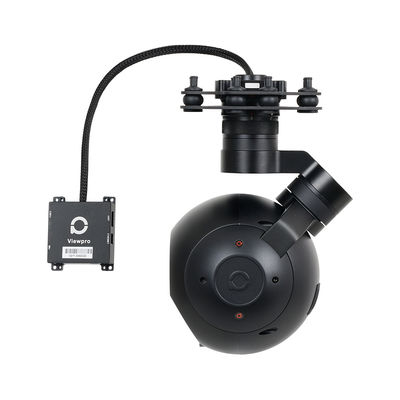

8.51MP 20x Optical Zoom 4k Ultra HD Drone Camera EO + IR Dual-Sensor Object Tracking

Product Specifications

Attribute	Value
Imager sensor	Tracking Gimbal Camera Imager sensor 1 / 2.5" SONY CMOS
Lens	20x optical zoom
Total pixel	8.51MP
Thermal imager	640*480, 25mm lens, 25Hz, 17μm
Object Tracking	√
Working voltage	4S~6S
Output	micro HDMI / IP
Control method	UART / PWM / PPM / S.BUS / TCP / UDP
Local storage	SD card up to 128G (4K &1080p optional)
N.W	899g
Dimension	118.7132.2183.2mm

20x Optical Zoom 4K EO + IR Dual-sensor Object Tracking Gimbal Camera

A 20x optical zoom 4K Electro-Optical (EO) plus Infrared (IR) dual-sensor object tracking gimbal camera offers unparalleled capabilities for detailed observation and tracking, combining high-resolution visible imaging with thermal detection.

4K Electro-Optical (EO) Sensor with 20x Optical Zoom

Resolution: 4K (3840 x 2160 pixels) for ultra-high-definition imaging
Optical Zoom: 20x optical zoom allows for detailed observation of distant objects without losing image quality
Function: Captures sharp, clear images and videos, enabling detailed analysis and long-range surveillance

Infrared (IR) Sensor

Function: Detects infrared radiation (heat signatures) emitted by objects, providing visibility in complete darkness and through obscurants
Resolution: 640 x 480 pixels
Benefits: Enables thermal imaging for detecting heat variations and anomalies, crucial for various applications like search and rescue, and industrial inspections

Dual-Sensor Fusion

Function: Integrates data from both EO and IR sensors to create a comprehensive view of the environment
Benefits: Enhances detection, identification, and tracking capabilities by leveraging the strengths of both sensors
