| Brand Name: | GS |
| Model Number: | M22 |
| Price: | 1$,Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 |
| Attribute | Value |
|---|---|

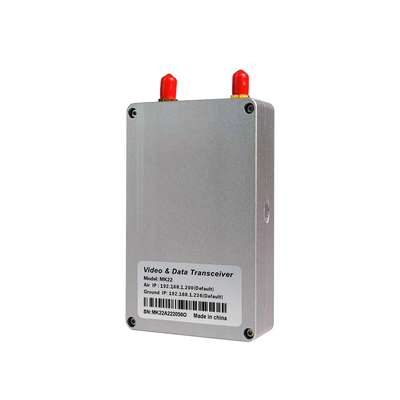

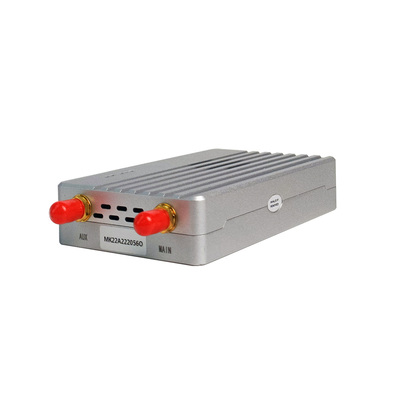

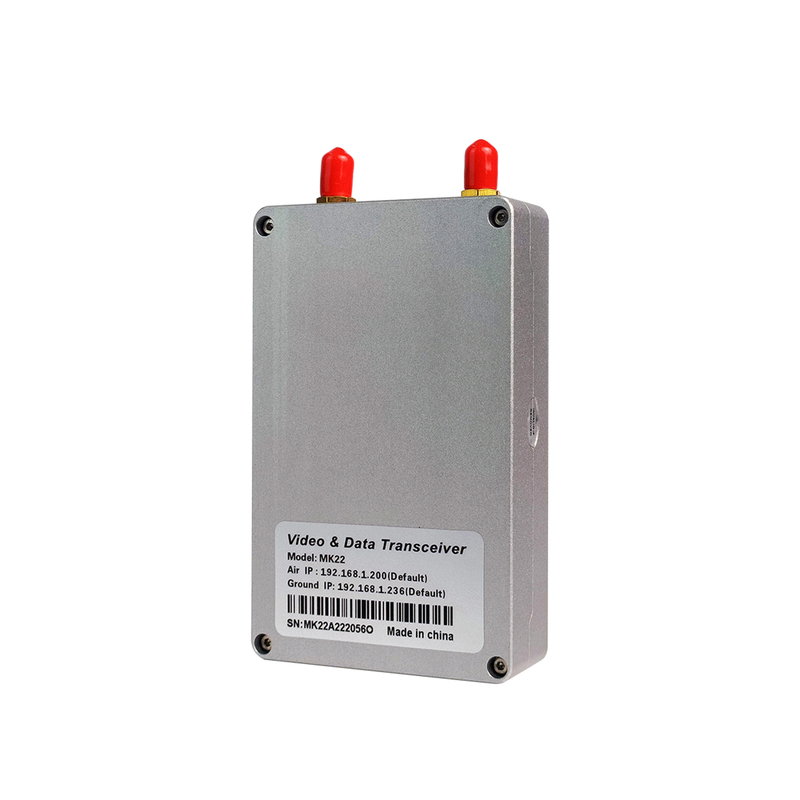

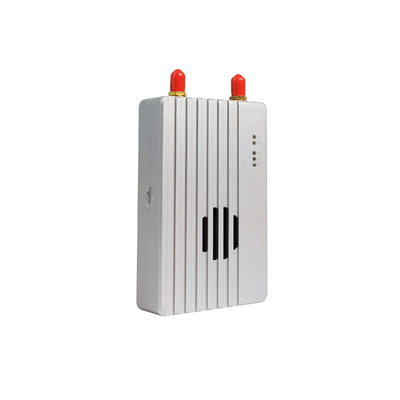

| Model number | MK22/55 |
| Air Size | 10cm × 6.3cm × 2.2cm / 150g |
| Ground Size | 25.6cm × 25.6cm × 9.4cm / 1.9kg |
| Operating frequency range | 800MHz / 1.4GHz / 2.4GHz |
| Channel bandwidth | 5MHz / 10MHz / 20MHz |
| Modulation mode | OFDM |
| Output power | MK22: 30dBm+1dB; MK55: 33dBm+1dB |
| Sensitivity | ≤-92dBm |
| Communication distance | MK22: 22km; MK55: 55km |
| Air Bitrate | Max. 30Mbps |
| Power supply range | DC9-28V (Battery 3S~6S) |
| Power consumption | ≤8.5W |
| Operating temperature | -40℃ to +70℃ |
| Storage temperature | -40℃ to +85°C |
