M13 EEE 90KV Brushless DC Motor for Long Flight Time Industrial Grade Drones

Name: M13 EEE 90KV Brushless DC Motor for Long Flight Time Industrial Grade Drones
Brand: Guangzhou Gesai Intelligent Electronic Technology Co., Ltd.
SKU: M13 EEE 90KV
Availability: InStock

Brand Name:	GS
Model Number:	M13 EEE 90KV
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Motor Model:

M13 EEE V1.0

Motor Size:

D:116 X 35 Mm

Propeller Mounting Holes:

D:20 M3x4, D:23 M4x4

Shaft Diameter:

IN: 15 Mm

Bearing:

6802ZZ*2

Cable Length:

150 Mm(extended Enameled Wires)

Rotor Balance:

≤10 Mg

Motor Balance:

≤20 Mg

Motor Mounting Holes:

D:50 M5x4

Disruptive Test:

500 V

Highlight:

Drone Brushless DC Motor

90KV Brushless DC Motor

M13 Brushless DC Motor

Product Description

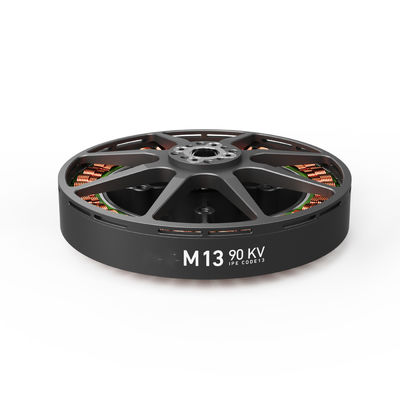

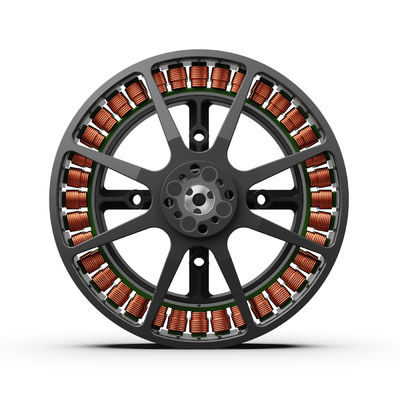

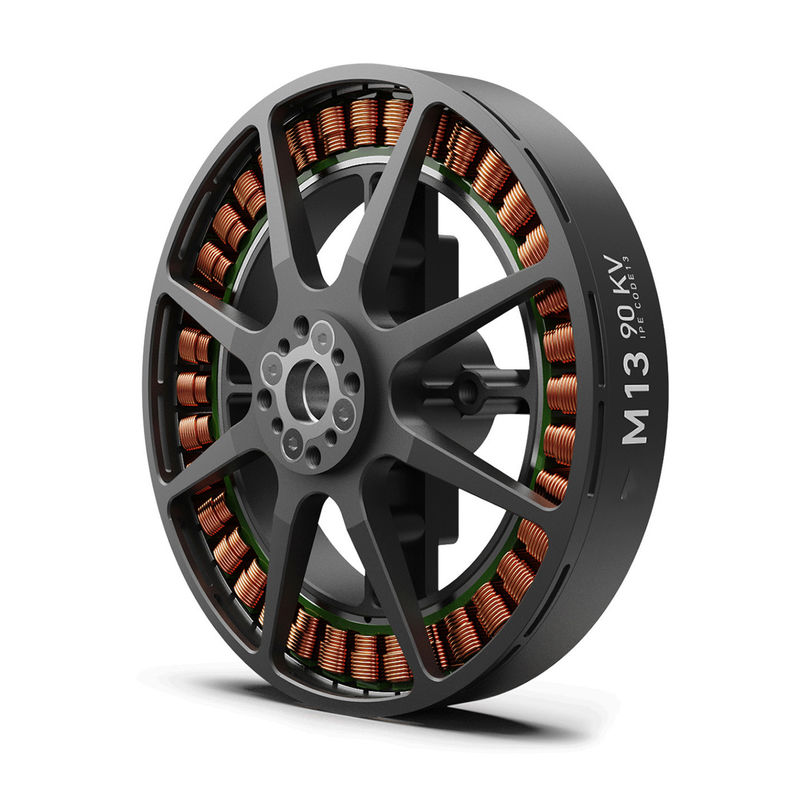

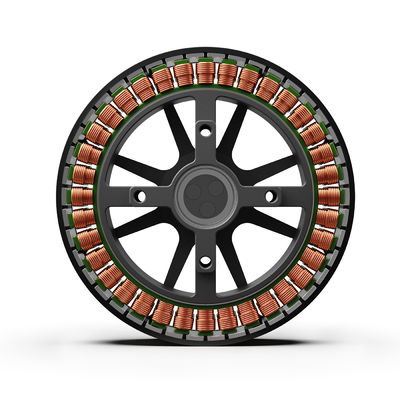

M13 EEE 90KV Brushless DC Motor Drone DD 118 x34.3 mm

M13 EEE 90KV Brushless DC Motor Drone

M Series motors are flagship propulsion systems specifically engineered for large multi-rotor electric paragliders, agricultural tethered VTOLs, and industrial UAVs. These professional-grade motors are ideal for applications including aerial photography, mapping, electric paragliding, agricultural spraying, surveying, and other scenarios requiring industrial-grade propulsion systems.

Constructed with industrial-grade components, this motor is designed for long flight time multirotor hexacopters and octocopters, as well as tethered drone applications requiring extended operational duration.

Technical Specifications

Parameter	Value	Parameter	Value
RPM/V (KV)	90 KV	Nominal Voltage	12S LiPo Battery
No Load Current	2.0A/20V	Internal Resistance	35mΩ
Motor Weight	615 g	Packaged Weight	965 g (200×150×70 mm)
Maximum Current	88 A	Maximum Power	4189W
Maximum Thrust	20.5 kg	Maximum Torque	8.8 Nm
Recommended ESC	MAD AMPX 120A (5-14S)	Recommended Propellers	36×11.5

Usage Guidelines

ESC Compatibility: Ensure the electronic speed controller (ESC) can handle low KV ratings and provide smooth throttle control
Battery Selection: Use batteries capable of providing the necessary voltage and current for efficient motor operation
Propeller Selection: Pair with larger, slower rotating propellers to optimize performance for heavy lifting or extended flight times

Warranty & Services

1 Year Warranty: Comprehensive 1-year warranty coverage for peace of mind
14-Day Return Policy: Unsatisfied with your purchase? Return within 14 days for replacement or refund (contact required before return)
3-Month Defective Replacement: Defective items within 3 months replaced free of charge or refunded after receiving defective unit
Post-3-Month Support: Defective items after 3 months can still be returned for replacement (customer responsible for return shipping)

Frequently Asked Questions

Q1: Do you support OEM/ODM?

A1: Yes. We offer OEM/ODM services including custom logo printing.

Q2: About samples

A2: Standard samples ready within 7 days; OEM/ODM samples in 10-20 days. Sample fee and shipping charges apply.

Q3: What is the delivery time?

A3: Regular orders ship within 15 days; OEM/ODM orders within 25-45 days (quantity dependent). Delays communicated in advance.

Q4: What is the minimum order quantity?

A4: No MOQ for wholesale (1 piece accepted), including OEM/ODM orders.

Q5: What are your payment terms?

A5: L/C or 100% T/T payment terms available.

Q6: Can you reduce shipping costs?

A6: We always select the most cost-effective and secure shipping options. While we have carrier partnerships, we cannot further reduce costs as we don't control pricing. Customers may arrange their own shipping if preferred.

Q7: Return policy

A7: Replacement requests must be made within 7 days of receipt. Returned items must be in original condition with customer responsible for return shipping.
