M20 IPE Brushless DC Motor Drone Motor with D:118 x45.9 mm Size D:20 M3x4 Propeller Mounting and 69022z*2 Bearing

M20 IPE Brushless DC Motor Drone Motor with D:118 x45.9 mm Size D:20 M3x4 Propeller Mounting and 69022z*2 Bearing

Brand Name: GS
Model Number: M20 IPE 80KV 100KV
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100
Detail Information
Place of Origin:
Guangdong, China
Motor Model:
M20 IPE V1.0
DD:118 X34.3 Mm:87.1 X26.7 MmMotor Size:
D:118 X45.9 Mm
Propeller Mounting Holes:
D:20 M3x4, D:23 M4x4
Shaft Diameter:
IN: 15 Mm
Bearing:
69022z*2
Cable Length:
150 Mm (extended Enameled Wires)
Rotor Balance:
≤10 Mg
Motor Balance:
≤20 Mg
Motor Mounting Holes:
D:50 M4x4
Disruptive Test:
500 V
Highlight:

Drone Brushless DC Motor

,

M20 IPE Brushless DC Motor

,

M20 Brushless DC Motor

Product Description
M20 IPE Brushless DC Motor Drone Designed With D 20 M3x4 Propeller Mounting

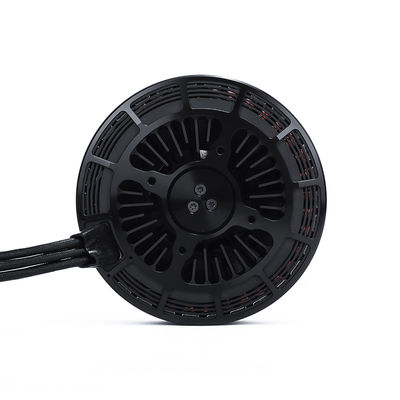

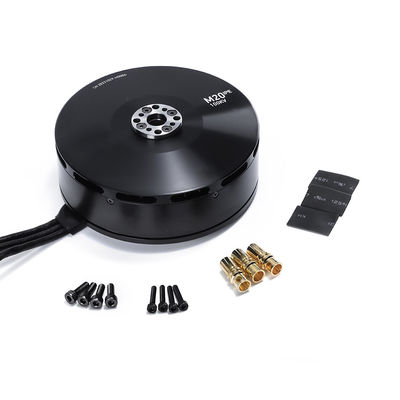

M20 IPE Brushless DC Motor Drone

M Series motors are the flagship motors designed specifically for large multi-rotor electric paragliders, large agricultural tethered VTOLs, and UAVs. Used for aerial photography, mapping, electric paragliding, agricultural spraying, surveying, or any application where professional industrial grade propulsion systems are required. This motor is manufactured with industrial grade components and is ideal for long flight time multirotor hexacopters, octocopters, and tethered drones.

Key Characteristics
High Power Output

Capable of generating substantial thrust, ideal for heavy drones or high-speed applications. Provides high torque for handling heavier payloads and challenging flight conditions.

Efficiency

Optimized power consumption design extends UAV flight time. Advanced design elements minimize energy loss and maximize performance.

Rugged Construction

Manufactured with high-quality materials to ensure long service life and wear resistance. Suitable for high temperature, high humidity, and demanding environments.

Accuracy and Control

Precision balancing elements ensure smooth operation and reduce vibration. Provides excellent control for stable flight, suitable for applications requiring precise motion.

Enhanced Cooling System

Integrated cooling mechanism effectively dissipates heat, prevents overheating, and ensures consistent performance during extended operation.
