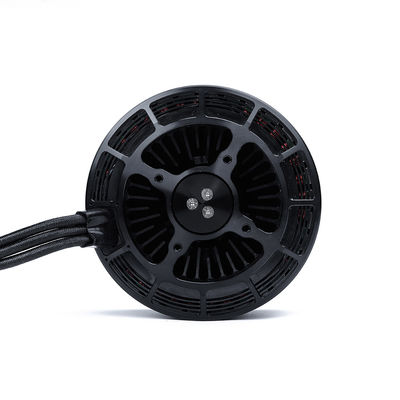

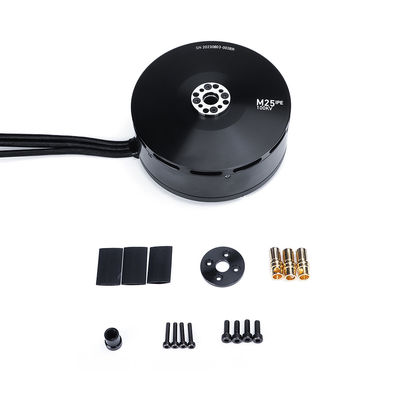

M25 IPE Brushless DC Motor with 15mm Shaft Diameter 10878W Maximum Power and 39.4kg Thrust for Manned Drones

Brand Name:	GS
Model Number:	M25 IPE 100KV
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Motor Model:

M25 IPE V1.0

DD:118 X34.3 Mm:87.1 X26.7 MmMotor Size:

D:118 X52.9 Mm

Propeller Mounting Holes:

D:20 M3x4, D:23 M4x4

Shaft Diameter:

IN: 15 Mm

Bearing:

6902ZZ*2

Cable Length:

150 Mm (extended Enameled Wires)

Rotor Balance:

≤10 Mg

Motor Balance:

≤20 Mg

Motor Mounting Holes:

D:50 M4x4

Disruptive Test:

500 V

Highlight:

M25 Brushless DC Motor

M25 IPE Brushless DC Motor

Manned Drone Brushless DC Motor

Product Description

M25 IPE Brushless DC Motor for Manned Drone Shaft Diameter IN 15mm

M25 IPE Brushless DC Motor Manned Drone

M Series motors are the flagship motors designed specifically for large multi-rotor electric paragliders, large agricultural tethered VTOLs, and UAVs. Used for aerial photography, mapping, electric paragliding, agricultural spraying, surveying, or any application where professional industrial grade propulsion systems are required. This motor is manufactured with industrial grade components and is ideal for long flight time multirotor hexacopters, octocopters, and tethered drones.

Specifications

RPM/V	100 KV
Nominal Voltage	12s lipo battery
No Load Current	4.3A/30V
Internal Resistance	16.7
Motor Weight	1280 g
Product Boxed Weight	1402g (200 x 150 x 70 mm)
Maximum Current	230.3 A
Maximum Power	10878W
Maximum Thrust	39.4 kg
Maximum Torque	19.9 Nm
Recommended ESC	MAD AMPX 200A (5-14S)
Recommended Propellers	19.9 Nm

Our Services

We provide 1 Year Warranty. Buy with confidence.
If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact us before you return it.
If item is defective within 3 months, we will send you a replacement without extra charge, or offer refund after we receive the defective item.
If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item, but you will need to pay the extra shipping fee.

Frequently Asked Questions

Q1: Do you support OEM/ODM?

A1: Yes. We can print your logo on the product.

Q2: About samples.

A2: Under normal circumstances, samples will be ready within 7 days, and 10-20 days for OEM/ODM orders. Sample fee and shipping will be charged.

Q3: What is the delivery time?

A3: For regular orders, we can ship within 15 days, for OEM/ODM, we can ship within 25-45 days (depending on the quantity). In the event of delays, we will notify you in advance of the status and resolution.

Q4: What is the minimum order quantity?

A4: There is no MOQ for wholesale (1 piece accepted), including OEM/ODM.

Q5: What are your payment terms?

A5: L/C, TT 100%.

Q6: Can you reduce the shipping cost?

A6: When calculating shipping costs, we always choose the cheapest and safest express service. Although we have partnerships with shipping companies, we cannot reduce costs further as we don't control the pricing. You are welcome to arrange your own shipping if preferred.

Q7: Return policy.

A7: If you want to replace received items, you must contact us within 7 days after receiving them. Returned items should be in their original condition and you will need to pay for additional shipping costs.
