M35 IPE Brushless DC Motor for Manned Drones - High Torque, Light and Compact, High Efficiency

Brand Name:	GS
Model Number:	M35 IPE 50KV
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Motor Model:

M35 IPE V1.0

Motor Size:

D:122 X68.5 Mm

Propeller Mounting Holes:

D:30 M4x4

Shaft Diameter:

IN: 20 Mm

Bearing:

6904ZZ*2

Cable Length:

150 Mm (extended Enameled Wires)

Rotor Balance:

≤10 Mg

Motor Balance:

≤20 Mg

Motor Mounting Holes:

D:55 M5x4

Disruptive Test:

500 V

Highlight:

M35 IPE Brushless DC Motor

Manned Drone Brushless DC Motor

Product Description

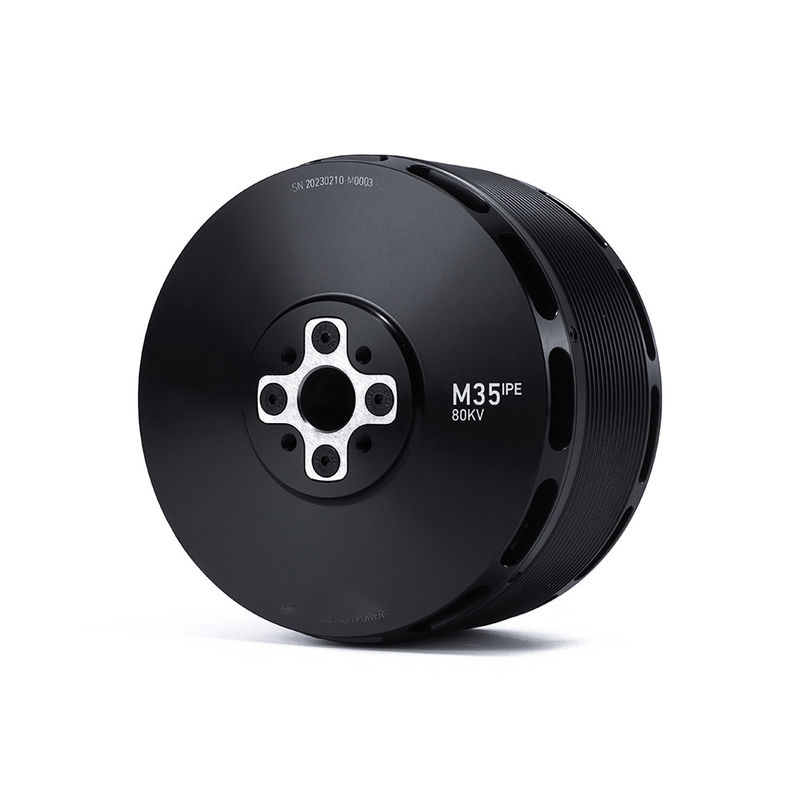

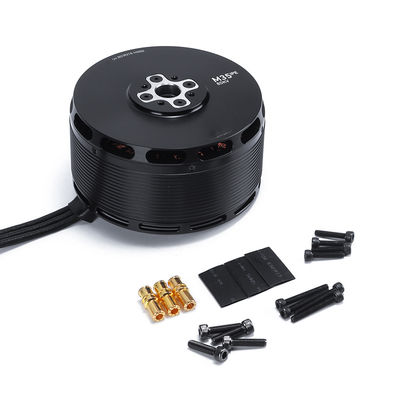

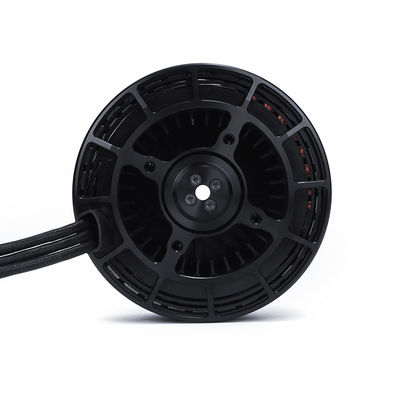

M35 IPE Brushless DC Motor Manned Drone

M Series motors are the flagship motors designed specifically for large multi-rotor electric paragliders, large agricultural tethered VTOLs and UAVs. Used for aerial photography, mapping, electric paragliding, agricultural spraying, surveying and anything in between where professional industrial grade propulsion is required. This type of motor is built with industrial grade components for an unmanned VTOL / Multi-Copter (Hexa,Octo) Personal Aerial Vehicle (PAV).

Specifications

RPMNV	50 KV	Nominal Voltage	24S lipo battery
No Load Current	2.5A/40V	Internal resistance	46.5mΩ
Motor Weight	1860 g	Product Boxed Weight	2383g(200x150 x90 mm)
Maximum Current	162.7 A	Maximum Power	15928W
Maximum thrust	53.8 kg	Maximum Torque	28.3 Nm
Recommended EsC	MAD AMPX 200A (12-24S)	Recommended Propellers	40.1x16

Main Features

High efficiency: Motor types are known for converting electrical energy into mechanical energy with minimal loss, which is crucial for flight endurance.
Light and compact: The motor design is light and compact, which helps to reduce the weight of the drone overall, which is crucial for flight.
High torque: The motor is capable of delivering high torque, which is critical to achieving the thrust necessary to lift and maneuver a manned drone.
