M60C60 PRO IPE Brushless DC Motor with 46 kW Power Output and 178 kg Maximum Thrust for Manned Drones

Brand Name:	GS
Model Number:	M60C60 PRO IPE 8.5KV
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Motor Model:

M6OC60 IPE V1.0

Motor Size:

D:196.8 X130 Mm

Propeller Mounting Holes:

D:75 M8x6 D:50 M6*6

Shaft Diameter:

IN: 25 Mm

Bearing:

NSK 6205 ZZ *2 NSK 61822 ZZ *1

Cable Length:

150 Mm (extended Enameled Wires)

Rotor Balance:

≤20 Mg

Motor Balance:

≤30 Mg

Motor Mounting Holes:

D:80 M6x6

Disruptive Test:

2000 V

Highlight:

M60C60 PRO IPE Brushless DC Motor

Drone Brushless DC Motor

Product Description

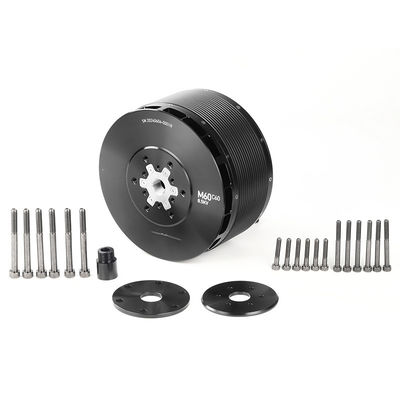

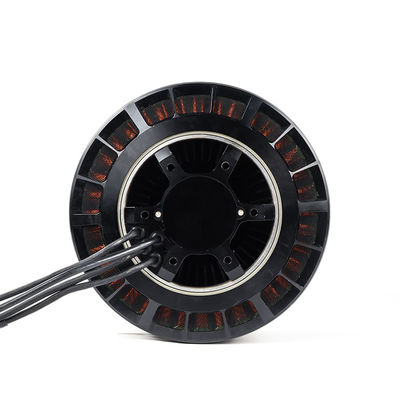

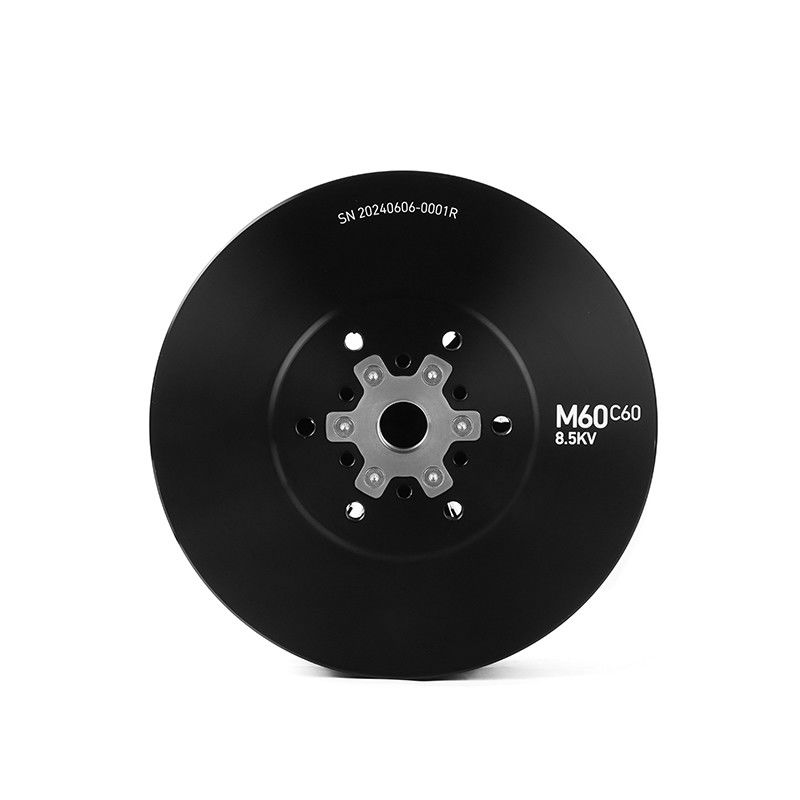

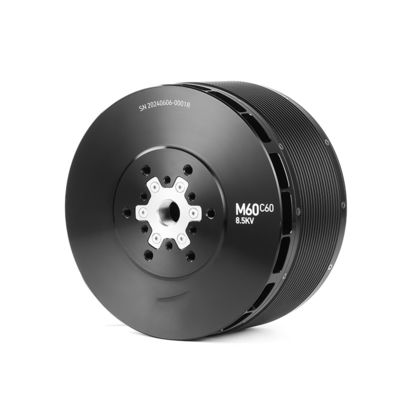

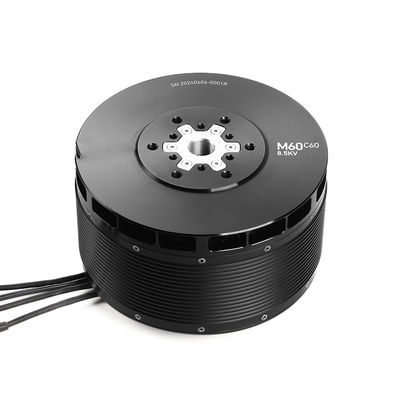

M60C60 PRO IPE Brushless DC Motor Manned Drone

The M60C60 PRO IPE Brushless DC Motor delivers exceptional performance for manned drone applications with a power output of 46 kW (equivalent to 62hp). Recommended configuration includes 72x25-inch propellers for optimal performance.

Specifications

RPMNV	8.5 KV	Nominal Voltage	354~400V
No Load Current	1.08A/49V	Internal Resistance	64.45mΩ
Motor Weight	9.2 kg	Product Boxed Weight	-
Maximum Current	123.83 A	Maximum Power	45.7 KW
Maximum Thrust	178 kg	Maximum Torque	152.7 Nm
Recommended ESC	SineSic Pro 160A 30KW(150V-435V)	Recommended Propellers	72x25

Key Features

Superior Lift Capability: High torque output enables the drone to lift and withstand heavier loads, essential for carrying pilot, structure, and cargo.
Extended Flight Time: IPE technology ensures efficient operation and optimal battery energy utilization for longer flight durations.
Reliable and Stable Performance: PRO-grade design handles demanding operating conditions with consistent power output for manned UAV applications.
Smooth and Controlled Flight: High torque enables precise movement control, ensuring stable hover, sensitive maneuvering, and smooth flight transitions.

Our Services

1 Year Warranty included for confident purchasing
14-day return policy for replacements or refunds (contact required before return)
Defective items within 3 months replaced free of charge or refunded after receipt
Defective items after 3 months replaced with customer responsible for shipping fees

Frequently Asked Questions

Q1: Do you support OEM/ODM?

A1: Yes. We can print your logo on the product.

Q2: About samples

A2: Samples ready within 7 days normally, 10-20 days for OEM/ODM orders. Sample fee and shipping charged.

Q3: What is the delivery time?

A3: Regular orders ship within 15 days, OEM/ODM within 25-45 days (quantity dependent). Delays communicated in advance.

Q4: What is the minimum order quantity?

A4: No MOQ for wholesale (1 piece accepted), including OEM/ODM.

Q5: What are your payment terms?

A5: L/C, TT 100%.

Q6: Can you reduce the shipping cost?

A6: We always select the most cost-effective and secure shipping options. Customers may arrange their own shipping if preferred.

Q7: Return policy

A7: Contact within 7 days of receipt for replacements. Returned items must be in original condition with customer responsible for shipping.
