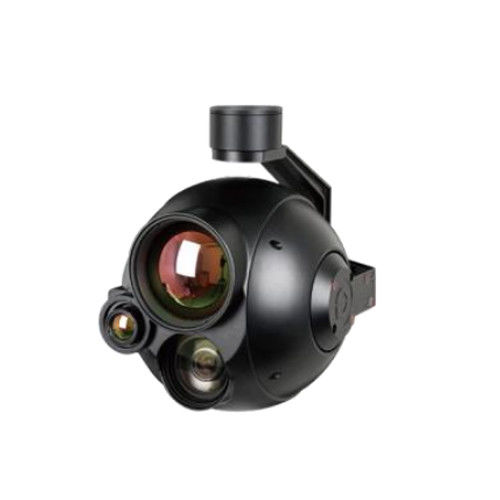

30x EO + IR Thermal Triple-Sensor Gimbal Drone Camera 2.13MP

Brand Name:	GS
Model Number:	Q30TIR-1352
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100

Detail Information

Product Description

Detail Information

Imager Sensor:

1/2.8" SONY CMOS

Lens:

30x Optical Zoom, F=4.3~129mm

Total Pixel:

2.13MP

Thermal Imager:

52mm Lens, 640x480, 25Hz, 17μm

Object Tracking:

√

Working Voltage:

4S~6S

Output:

Micro HDMI / IP / SDI

Control Method:

UART / PWM / PPM / S.BUS / TCP

Local Storage:

SD Card Up To 128G

N.W:

1381g

Dimension:

127.7*172.9*186.7mm

Packaging Details:

127.7*172.9*186.7mm

Highlight:

Triple-Sensor gimbal drone camera

Triple-Sensor drone com gimbal

Gimbal Drone Camera 2.13MP

Product Description

30x EO + IR Thermal Triple-Sensor Gimbal Drone Camera 2.13MP

Attribute	Value
Imager sensor	1/2.8" SONY CMOS
Lens	30x optical zoom, f=4.3~129mm
Total pixel	2.13MP
Thermal imager	52mm lens, 640x480, 25Hz, 17μm
Object Tracking	√
Working voltage	4S~6S
Output	micro HDMI / IP / SDI
Control method	UART / PWM / PPM / S.BUS / TCP
Local storage	SD card up to 128G
N.W	1381g
Dimension	127.7172.9186.7mm

Advanced Triple-Sensor Gimbal Camera System

This 30x EO + IR thermal triple-sensor object tracking gimbal camera provides exceptional capabilities for detailed observation, thermal imaging, and precise object tracking. The system integrates high-resolution electro-optical sensors with powerful optical zoom, thermal imaging, and additional specialized sensors for comprehensive surveillance solutions.

30x Optical Zoom Electro-Optical Sensor

Resolution: Ultra-high-definition imaging up to 4K (3840 x 2160 pixels)
Optical Zoom: 30x magnification for detailed observation without quality loss
Function: Captures crisp, clear images and videos for detailed analysis and long-range surveillance

Infrared Thermal Sensor

Resolution: 640 x 480 pixel thermal imaging
Function: Detects infrared radiation for visibility in complete darkness and through obscurants
Benefits: Enables thermal imaging for detecting heat variations in search and rescue or industrial applications

Third Sensor Options

Laser Rangefinder: Provides accurate distance measurement for enhanced targeting
Low-Light Sensor: Improves visibility in twilight or moonlit conditions

3-Axis Gimbal Stabilization

Function: Motorized stabilization in pan, tilt, and roll axes
Benefits: Ensures steady, jitter-free imaging crucial for accurate tracking from moving platforms
