M30 PRO IPE Brushless DC Motor for Manned Drones with 45.2kg Maximum Thrust and 12-14S Voltage Industrial Grade Components

Brand Name:	GS
Model Number:	M30 PRO IPE 100KV
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Motor Model:

M30 IPE PRO V1.0

DD:118 X34.3 Mm:87.1 X26.7 MmMotor Size:

D:122x59 Mm

Propeller Mounting Holes:

D:31 M4.2x4 D:24 M4.2x4

Shaft Diameter:

IN: 15 Mm

Bearing:

HR30202]/3202A-2RZTN

Cable Length:

150 Mm (extended Enameled Wires)

Rotor Balance:

≤10 Mg

Motor Balance:

≤20 Mg

Motor Mounting Holes:

D:50 M4x4

Disruptive Test:

500 V

Highlight:

M30 PRO Brushless DC Motor

Manned Drone Brushless DC Motor

M30 PRO IPE Brushless DC Motor

Product Description

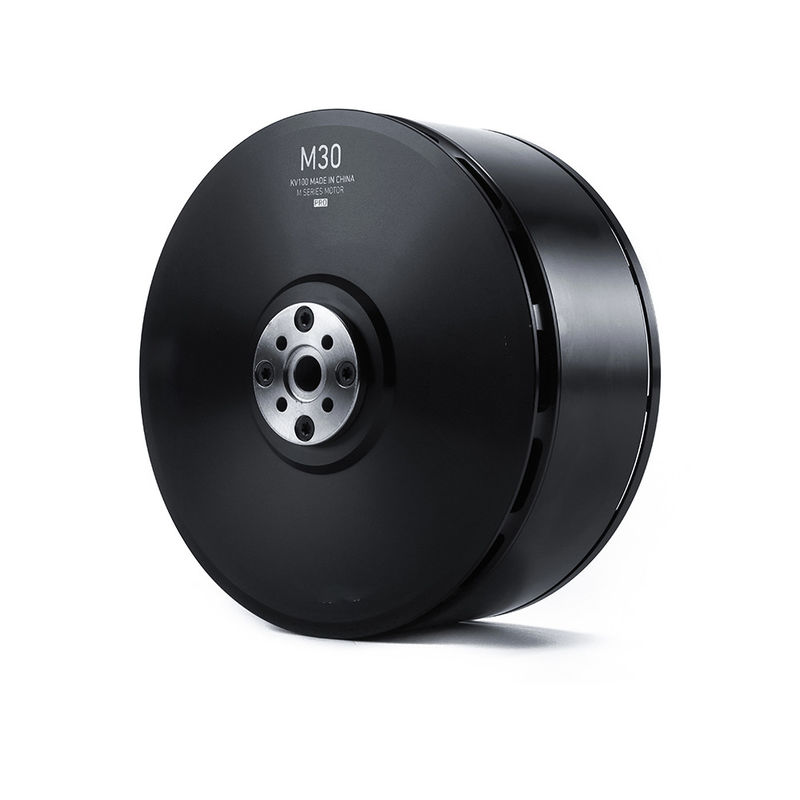

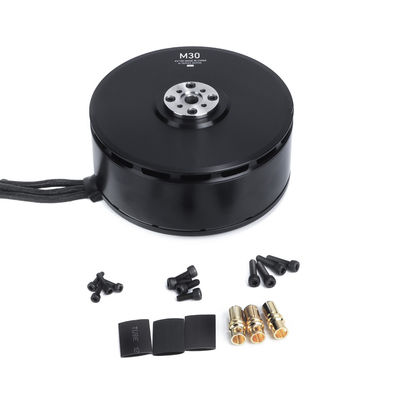

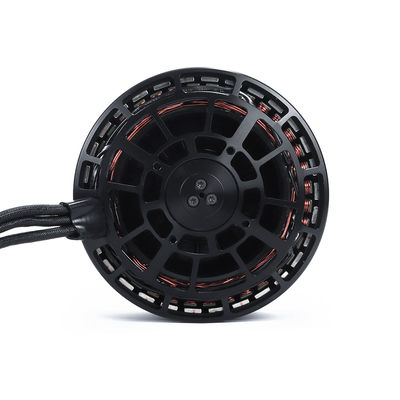

M30 PRO IPE Brushless DC Motor Manned Drone

M Series motors are the flagship motors designed specifically for large multi-rotor electric paragliders, large agricultural tethered VTOLs, and UAVs. Used for aerial photography, mapping, electric paragliding, agricultural spraying, surveying, or any application requiring professional industrial grade propulsion systems. This motor is manufactured with industrial grade components.

12S Voltage
Recommended continuous thrust: 12-15kgf
ESC Options: AMPX ESC 200A (5-14S), AMPX ESC 300A (5-14S)
Propeller: 40x13.1 inch carbon fiber prop, fluxer VTOL 40.1x16 inch propeller

Specifications

KV Rating	100 KV
Nominal Voltage	12-14S LiPo Battery
No Load Current	4.3A/30V
Internal Resistance	17
Motor Weight	1630g
Product Boxed Weight	2153g (200x150x90 mm)
Maximum Current	236.1A
Maximum Power	13658W
Maximum Thrust	45.2kg
Maximum Torque	23.9Nm
Recommended ESC	MAD AMPX 200A (5-14S), AMPX 300A (5-14S), MAD AMPX 300A (12-24S)
Recommended Propellers	40x13.1

Our Services

1 Year Warranty - Buy with confidence
If unsatisfied with your item, return within 14 days for replacement or refund (please contact us before returning)
If item is defective within 3 months, we will send a replacement without extra charge or offer refund after receiving defective item
If item is defective after 3 months, you can still return it for replacement (customer pays return shipping)

Frequently Asked Questions

Q1: Do you support OEM/ODM?

A1: Yes. We can print your logo on the product.

Q2: About samples

A2: Under normal circumstances, samples will be ready within 7 days, and 10-20 days for OEM/ODM orders. Sample fee and shipping will be charged.

Q3: What is the delivery time?

A3: For regular orders, we can ship within 15 days; for OEM/ODM, we can ship within 25-45 days (depending on quantity). In the event of delays, we will notify you in advance of the status and resolution.

Q4: What is the minimum order quantity?

A4: There is no MOQ for wholesale (1 piece accepted), including OEM/ODM.

Q5: What are your payment terms?

A5: L/C, TT 100%.

Q6: Can you reduce the shipping cost?

A6: When calculating shipping costs, we always choose the cheapest and safest express service. Although we have partnerships with shipping companies, we cannot reduce costs further as we don't control pricing. You are welcome to arrange your own shipping if preferred.

Q7: Return policy

A7: If you want to replace received items, you must contact us within 7 days after delivery. Returned items should be in their original condition and you are responsible for return shipping costs.
