| Brand Name: | GS |
| Model Number: | FOC 120A 8-14S |
| Price: | 1$,Negotiable |
| Attribute | Value |
|---|---|
| Name | AMPX FOC 120A 8-14S |
| Recommended pulling force | 10-12Kg |
| Maximum input Voltage | 60.9V |
| Rated Output Current | 35A |
| Peak Output current | 150A(10S) |
| PWM input Level | 3.3V/5V |
| PWM Pulse | 200-2000uS |
| PWM Frequency | 50-450 HZ |
| Weight(without cable) | 116g |
| Working Temperature | -20-50°C |

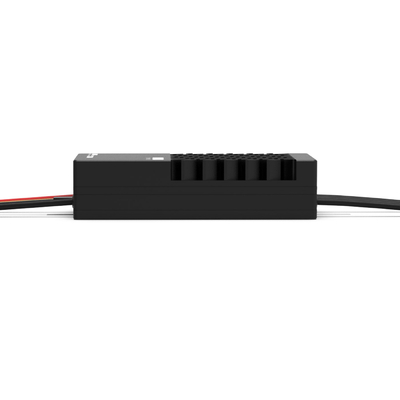

FOC 120A 8-14S ESC is designed for industrial UAV applications, compatible with MadM10, M17, and M20 motors, supporting single rotor take-off weights up to 10~12Kg. Featuring FOC sinusoidal drive for electric modulation, this controller delivers optimized performance through advanced control algorithms and circuit design.
Reaches maximum limiting current within 10ms when receiving large throttle changes, significantly improving response speed.
Double-sided heat dissipation process reduces thermal resistance between shell and internal components (only 15°C difference), extending device life under full load.
Detects internal circuit defects during manufacturing process, with visual indicators for any operational abnormalities.
Includes blocking protection, short circuit protection, and PWM throttle identification to prevent damage from various fault conditions.
Separate electric, motor, power, signal, and lamp board connections enable easy removal and quick repairs with just a screwdriver.
Supports firmware updates and data recording through electrically tuned communication box, improving system black box data for accurate fault diagnosis.
A1: Yes. We can print your logo on the product.
A2: Standard samples ready in 7 days, OEM/ODM samples in 10-20 days (sample fee and shipping apply).
A3: Regular orders ship in 15 days, OEM/ODM in 25-45 days (quantity dependent). Delays communicated in advance.
A4: No MOQ - wholesale orders from 1 piece accepted, including OEM/ODM.
A5: L/C or 100% TT payment.
A6: We always select the most economical safe shipping option. Customers may arrange their own shipping if preferred.
A7: Replacement requests must be made within 7 days of receipt. Items must be in original condition with customer covering return shipping.
