| Brand Name: | GS |
| Model Number: | AMPX 80A (5-14S) |
| Price: | Negotiable |
| Attribute | Value |
|---|---|

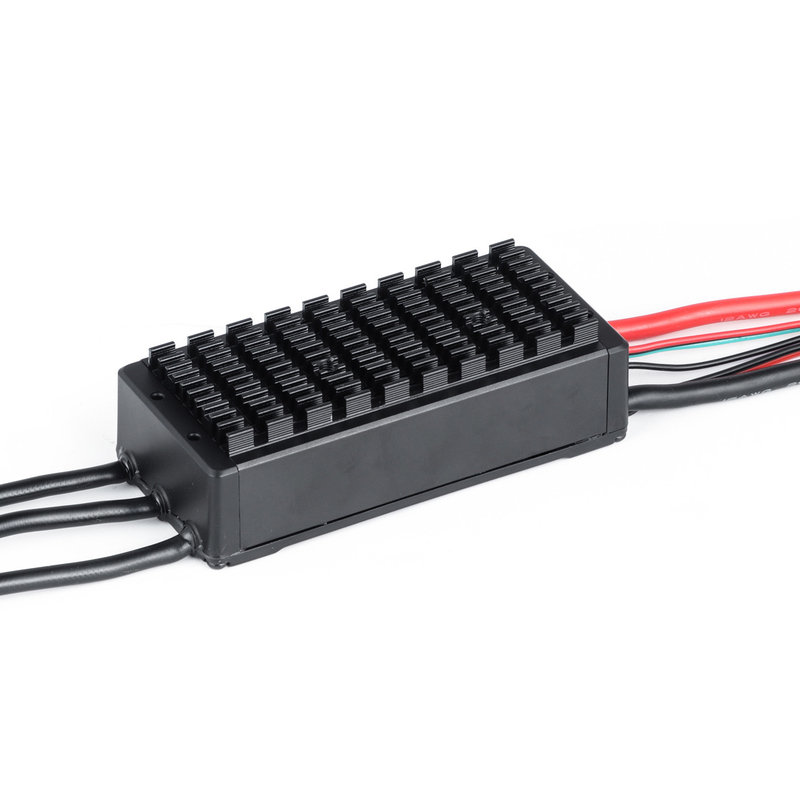

| Model | AMPX 80A ESC |
| BEC | 5V/200MA output |
| PWM Input Signal Voltage | 3.3V/5V (compatible) |
| Power Wire / Wire Length | 12AWG/800mm |
| Supported Lithium Cell Count | 5~14S |
| Dimensions (L*W*H) | 79.6*36.0*23.5mm |
| Operating Environment | -20~65°C |
| Current Limit | 84A |
| Protection Type | Description |
|---|---|
| Short Circuit Protection | When triggered, ESC shuts down output and automatically restarts after 100ms |
| Stall Protection | Requires throttle return to zero and re-advance to restore operation |
| Voltage Protection | Prevents motor start if battery voltage is below 16V or above 64V (disabled during flight) |
| Temperature Protection | Reduces output power at 125°C, cuts off at 140°C, restores when temperature drops to 80°C |
| Throttle Loss Protection | Cuts power after 2 seconds of signal loss, restores when signal returns |
| Startup Protection | Shuts down output if motor doesn't start within 10 seconds of throttle increase |
| Throttle Calibration | Connect motor, push throttle to max, power on. After two beeps, pull throttle to min. Successful calibration indicated by "DO Mi SO" sound |
