products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Drone Electronic Speed Controller
Created with Pixso.

Compact Drone Motor Controller Uav Electronic Speed Controller FOC AMPX 200A 8-14S Drone

Compact Drone Motor Controller Uav Electronic Speed Controller FOC AMPX 200A 8-14S Drone

Compact Drone Motor Controller Uav Electronic Speed Controller FOC AMPX 200A 8-14S Drone

Brand Name: GS
Model Number: Negotiable
Price: 1$,Negotiable
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Name:
AMPX FOC 200A 8-14S
Recommended Pulling Force:
20-25Kg
Maximum Input Voltage:
60.9V
Rated Output Current:
80A
Peak Output Current:
260A(10S)
PWM Input Level:
3.3V/5V
PWM Pulse:
200-2000us
PWM Frequency:
50-450 HZ
Weight(without Cable):
304g
Working Temperature:
-20-50°C
Highlight:

Compact Drone Motor Controller

,

Compact Uav Electronic Speed Controller

,

Advanced Uav Electronic Speed Controller

Product Description
Electronic Speed Controller FOC AMPX 200A 8-14S Drone
Product Specifications
Attribute Value
Name AMPX FOC 200A 8-14S
Recommended pulling force 20-25Kg
Maximum input Voltage 60.9V
Rated Output current 80A
Peak Output Current 260A(10S)
PWM Input Level 3.3V/5V
PWM Pulse 200-2000us
PWM Frequency 50-450 HZ
Weight (without cable) 304g
Working Temperature -20-50°C
Product Description

The FOC 200A 8-14S ESC is designed for industrial UAV applications, compatible with MadM17, M20, and M20MINI motors, supporting single rotor take-off weights up to 20-25kg.

This electronic speed controller features:

  • FOC sinusoidal drive for optimized electric modulation
  • Advanced control algorithm for fast throttle response and stable operation in harsh environments
  • Comprehensive hardware self-check program to detect potential system faults
  • Robust protection mechanisms to minimize damage during failures
ESC Protection Mechanism
  • Fast motor response: Achieves maximum limiting current within 10ms of throttle changes
  • Optimized heat dissipation: Double-sided cooling process reduces thermal resistance
  • Hardware self-check: Detects manufacturing defects during power-on
  • Comprehensive protection: Includes blocking, short circuit, and PWM throttle identification protection
  • Modular design: Easy maintenance with separated electric components
  • CAN communication: Supports firmware updates and system data recording

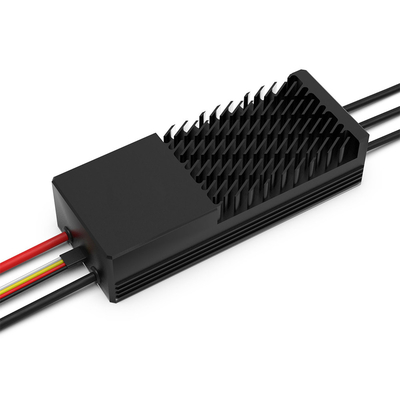

Compact Drone Motor Controller Uav Electronic Speed Controller FOC AMPX 200A 8-14S Drone 0

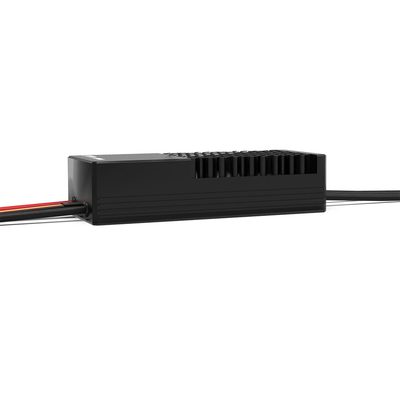

Compact Drone Motor Controller Uav Electronic Speed Controller FOC AMPX 200A 8-14S Drone 1

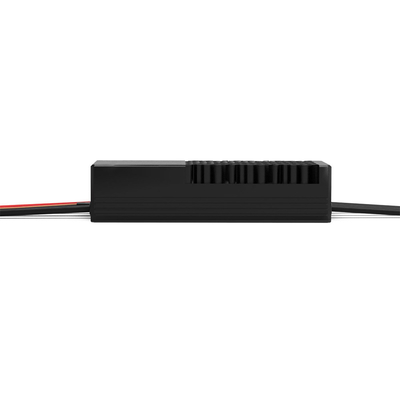

Compact Drone Motor Controller Uav Electronic Speed Controller FOC AMPX 200A 8-14S Drone 2
Our Services
  • 1 Year Warranty included
  • 14-day return policy for replacements or refunds
  • Free replacements for defective items within 3 months
  • Extended support after 3 months (shipping fee applies)

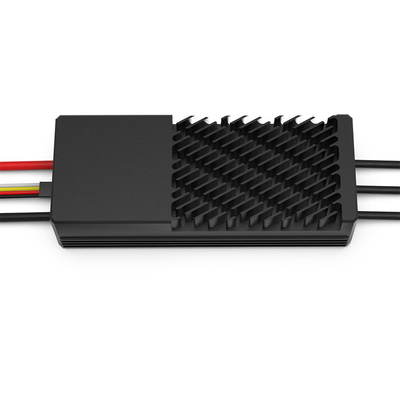

Compact Drone Motor Controller Uav Electronic Speed Controller FOC AMPX 200A 8-14S Drone 3
Frequently Asked Questions
Q1: Do you support OEM/ODM?
A1: Yes. We can print your logo on the product.
Q2: About samples.
A2: Samples ready in 7 days (10-20 days for OEM/ODM). Sample fee and shipping apply.
Q3: What is the delivery time?
A3: Regular orders ship in 15 days, OEM/ODM in 25-45 days.
Q4: What is the minimum order quantity?
A4: No MOQ - wholesale orders from 1 piece accepted.
Q5: What are your payment terms?
A5: L.C. or 100% TT payment accepted.
Q6: Can you reduce the shipping cost?
A6: We always select the most economical shipping option available.
Q7: Return policy.
A7: Returns accepted within 7 days if items are in original condition.
