Drone Electronic Speed Controller
Created with Pixso.

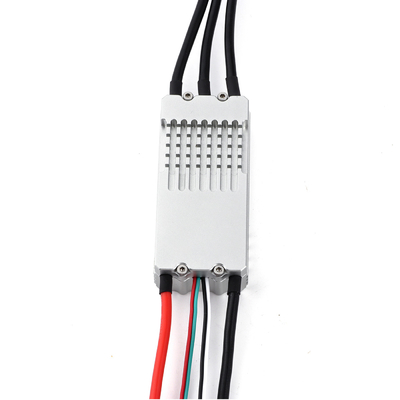

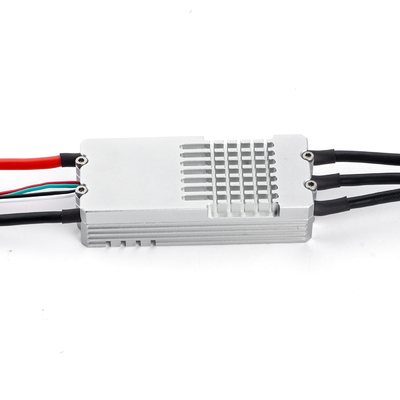

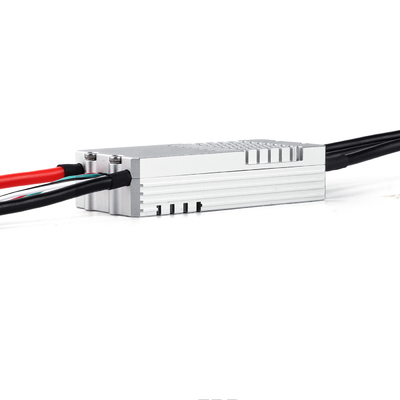

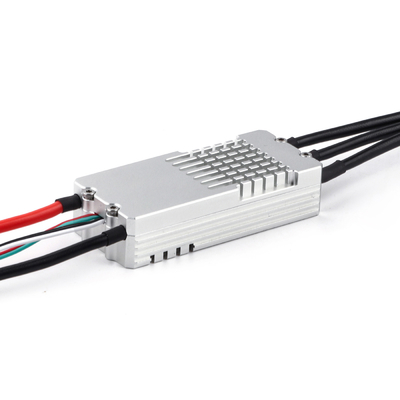

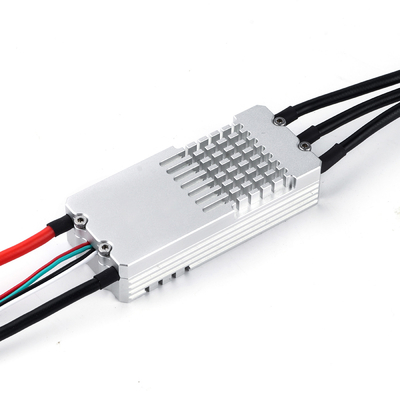

Easy Installation Quadcopter Motor Controller Drone Motor Driver AMPX 60A (5-14S) Drone ESC

Easy Installation Quadcopter Motor Controller Drone Motor Driver AMPX 60A (5-14S) Drone ESC

Easy Installation Quadcopter Motor Controller Drone Motor Driver AMPX 60A (5-14S) Drone ESC

Brand Name: GS
Model Number: AMPX 60A (5-14S)
Price: 1$,Negotiable
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Model:
AMPX 60A ESC HV
Compatible Signal Frequency:
50-500HZ
PWM Input Signal Voltage:
3.3V/5V (compatible)
Power Wire / Wire Length:
14AWG/800mm
Supported Lithium Cell Count:
5~14S
Dimensions (L*W*H):
71*31.44*15.8mm
Operating Environment Temperature:
(-20~65°C)
Current Limit:
72A
Signal Wire Length:
1000 Mm
Highlight:

Easy Installation Quadcopter Motor Controller

,

Easy Installation Drone Motor Driver

,

Industrial Quadcopter Motor Controller

Product Description
Electronic Speed Controler AMPX 60A (5-14S) Drone ESC
Product Specifications
Attribute Value
Model AMPX 60A ESC HV
Compatible Signal Frequency 50-500HZ
PWM Input Signal Voltage 3.3V/5V (compatible)
Power Wire / Wire Length 14AWG/800mm
Supported Lithium Cell Count 5~14S
Dimensions (L*W*H) 71*31.44*15.8mm
Operating Environment Temperature -20~65°C
Current Limit 72A
Signal wire Length 1000 mm
Advanced Protection Features
  • Short Circuit Protection: Automatically shuts down output when a short circuit is detected. Requires power cycle to restore normal operation.
  • Stall Protection: Detects motor stall and requires throttle reset to zero before restoring operation.
  • Voltage Protection: Prevents motor start if battery voltage is below 16V or above 64V (disabled during flight).
  • Temperature Protection: Reduces output power to 50% at 125°C and shuts down at 140°C. Resumes normal operation when temperature drops below 80°C.
  • Throttle Loss Protection: Cuts power if throttle signal is lost for more than 2 seconds, restoring power when signal returns.
  • Startup Protection: Shuts down output if motor isn't started within 10 seconds of throttle increase.
Throttle Calibration
  1. Connect the motor first
  2. Push throttle to maximum then power up
  3. After hearing two beeps, pull throttle to minimum
  4. "DO Mi so" sound indicates successful throttle range setting
Easy Installation Quadcopter Motor Controller Drone Motor Driver AMPX 60A (5-14S) Drone ESC 0
Easy Installation Quadcopter Motor Controller Drone Motor Driver AMPX 60A (5-14S) Drone ESC 1
Warranty & Services
1 Year Warranty
14-day return policy for unsatisfied customers
Free replacement for defective items within 3 months
Post-3 month replacements available with shipping fee
Easy Installation Quadcopter Motor Controller Drone Motor Driver AMPX 60A (5-14S) Drone ESC 2
Frequently Asked Questions
Do you support OEM/ODM?
Yes. We can print your logo on the product.
About samples
Samples ready in 7 days (10-20 days for OEM/ODM). Sample fee and shipping charged.
What is the delivery time?
Regular orders ship within 15 days, OEM/ODM within 25-45 days. Delays communicated in advance.
What is the minimum order quantity?
No MOQ for wholesale (1 piece accepted), including OEM/ODM.
What are your payment terms?
L/C or TT 100%.
Can you reduce the shipping cost?
We always choose the cheapest safe option. Customers may arrange their own shipping.
Return policy
Contact within 7 days for replacements. Items must be in original condition with customer paying return shipping.
