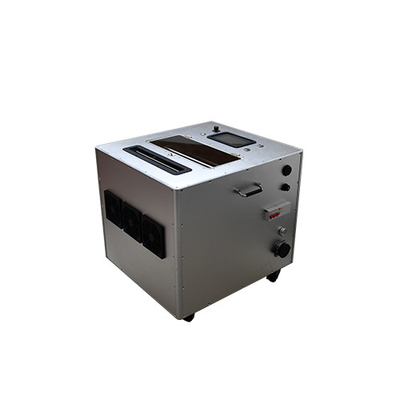

Advanced Tethered Drone Systems 20kw Mooring Box With Aviation Aluminum Alloy Shell

Advanced Tethered Drone Systems 20kw Mooring Box With Aviation Aluminum Alloy Shell

Advanced Tethered Drone Systems 20kw Mooring Box With Aviation Aluminum Alloy Shell

Brand Name: GS
MOQ: 1
Price: 1$,Negotiable
Payment Terms: T/T
Supply Ability: 100
Detail Information
Product Description
Detail Information
External Dimensions:
619×637×509mm
Shell Material:
Aviation Aluminum Alloy
Weight:
60Kg (including 200m Cable)
Cable Length:
200m
Cable Torque Adjustment:
Supported
Rated Power:
20 KW
Rated Input Voltage:
AC 3800V
Output Voltage:
850VDC
Maximum Output Current:
20A
Interface Configuration:
Type-C, USB, Ethernet Port (customized)
Working Temperature:
-20 ℃~+55 ℃
Highlight:

Advanced Tethered Drone Systems

,

20kw Tethered Drone Systems

,

20kw Tethered Power System

Product Description
20kw Mooring Box Tethered UAV Systems With Aviation Aluminum Alloy Shell
Product Specifications
Attribute Value
External dimensions 619×637×509mm
Shell material Aviation aluminum alloy
Weight 60Kg (including 200m cable)
Cable length 200m
Cable torque adjustment Supported
Rated power 20 kW
Rated input voltage AC 3800V
Output voltage 850VDC
Maximum output current 20A
Interface configuration Type-C, USB, Ethernet port (customized)
Working temperature -20 ℃~+55 ℃
Product Features
  • Designed for continuous power and secure tethering for long-endurance UAV operations
  • Includes carrying handles and universal wheels for easy transportation
  • Comprehensive system with automatic wire-winding, power management, and safety features
  • Simple operation with one-button controls for power supply and wire-winding modes
  • Multiple interface options including USB, TYPE-C for OTG upgrade, and customizable Ethernet port
  • 7-inch display screen showing critical operational parameters
  • Advanced alarm system for voltage, temperature, and current monitoring
  • Cable observation hatch for easy cable arrangement
  • Strong and weak electrical separation design
Advanced Tethered Drone Systems 20kw Mooring Box With Aviation Aluminum Alloy Shell 0
Our Services
  • 1 Year Warranty included
  • 14-day return policy for unsatisfied customers
  • 3-month replacement policy for defective items
  • Extended support with shipping fee responsibility after 3 months
Advanced Tethered Drone Systems 20kw Mooring Box With Aviation Aluminum Alloy Shell 1
Advanced Tethered Drone Systems 20kw Mooring Box With Aviation Aluminum Alloy Shell 2
Frequently Asked Questions
Q1: Do you support OEM/ODM?
A1: Yes. We can print your logo on the product.
Q2: About samples.
A2: Samples ready within 7 days (10-20 days for OEM/ODM). Sample fee and shipping charged.
Q3: What is the delivery time?
A3: Regular orders ship within 15 days, OEM/ODM within 25-45 days (quantity dependent).
Q4: What is the minimum order quantity?
A4: No MOQ for wholesale (1 piece accepted), including OEM/ODM.
Q5: What are your payment terms?
A5: L/C.TT100%.
Q6: Can you reduce the shipping cost?
A6: We always choose the most economical shipping option available.
Q7: Return policy.
A7: Contact us within 7 days for replacements. Items must be in original condition with shipping paid by customer.
