| Brand Name: | GS |
| Model Number: | SF-70X-100M |
| MOQ: | 1 |
| Price: | 1$,Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 |
| Attribute | Value |
|---|---|
| Dimensions of J3 drone | 600*600*300mm |
| Wheelbase between diagonal motors | 735mm |
| Weight | Lamp board ≤50g, Strip light: ≤200g |
| Maximum load | 3kg |
| Hovering accuracy | ±0.1 m |
| Location accuracy | 1cm+1ppm(Horizontal) 1.5cm+1ppm(Vertical) |
| Maximum wind speed tolerance | Force 7, 15m/s |
| UAV flight | ≤300W |

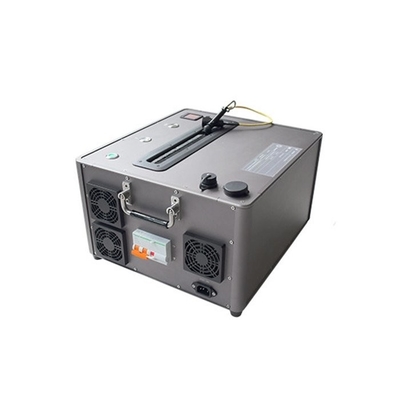

| Dimensions of the tethered box | 422*350*225mm |
| Equipment weight | 13kg±1kg |
| Cable length | ≥100m |
| Cable diameter | ≤4mm |
| Output power and voltage | Adjustable range 0-4000W, voltage 200-500vdc |
| Cable reeling and unreeling system | Automatic real-time operation with adjustable torque size, includes manual winding handle |
| Size of Airborne Module | 103mm*53mm*47mm |
| Weight of Airborne Module | 400g±10g |

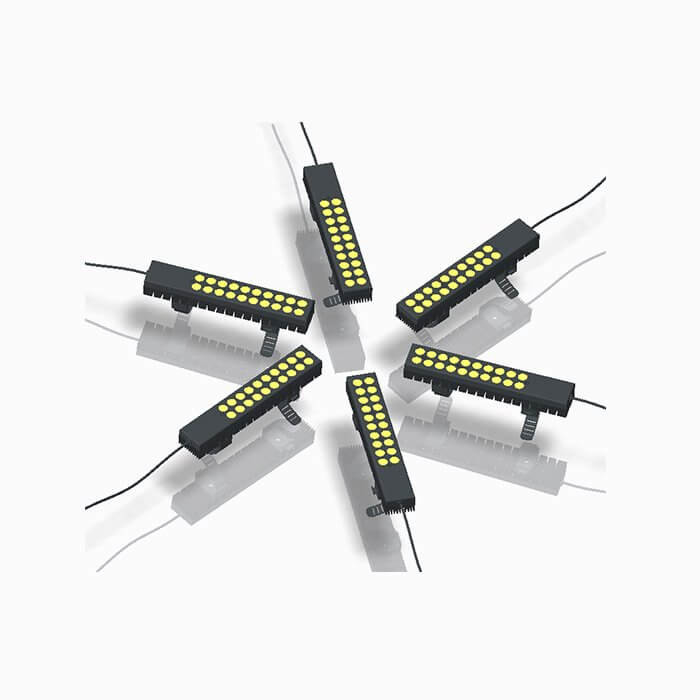

| Dimensions of Lighting Strip | 200*35*25mm Aluminum-milled heat-dissipating fins and lamp cover |
| Luminous flux | ≥10000lm |
| Input voltage | 15-70vdc |
The Tethered UAV Lighting System is a 100-meter tethered lighting system developed for the night-time emergency lighting market. It meets the demand for long-endurance lighting in specific scenarios such as night-time search and rescue, construction, maintenance, and supplementary lighting.
This product can effectively illuminate an area of over 3,000 square meters continuously for 8 hours, solving night-time lighting challenges. It's an essential tool for emergency rescue teams, as well as for night operations in railway and power grid applications.
A1: Yes. We can print your logo on the product.
A2: Samples ready within 7 days (10-20 days for OEM/ODM). Sample fee and shipping charged.
A3: Regular orders ship within 15 days; OEM/ODM within 25-45 days (quantity dependent).
A4: No MOQ (1 piece accepted), including OEM/ODM.
A5: L/C.TT100%.
A6: We always choose the cheapest, safest option. You're welcome to arrange your own shipping.
A7: Contact us within 7 days for replacements. Items must be in original condition; customer pays return shipping.
