500W Tethered UAV Systems Weather Resistant With Robust Construction

500W Tethered UAV Systems Weather Resistant With Robust Construction

500W Tethered UAV Systems Weather Resistant With Robust Construction

Brand Name: GS
MOQ: 1
Price: 1$,Negotiable
Payment Terms: T/T
Supply Ability: 100
Detail Information
Product Description
Detail Information
Highlight:

Weather Resistant Tethered UAV Systems

,

Robust tethered power system for drones

,

Robust Tethered UAV Systems

Product Description
Royal 2 Mooring Box Tethered UAV Systems 500W Weather Resistant
System Components
Mooring Box
  • Purpose: Designed to securely anchor and support the tethered UAV system
  • Construction: Robust and weather-resistant for durability in various environmental conditions
  • Mounting: Provides a stable platform for attaching and managing the tether cable
Tether Cable
  • Power Transmission: Conducts electrical power from the ground station to the UAV
  • Data Communication: Facilitates secure data transfer between the UAV and ground station
  • Durability: Designed to withstand physical stress and environmental elements
Ground Station
  • Power Supply: Provides continuous power to the UAV via the tether
  • Control Interface: Allows operators to pilot the UAV and monitor its systems
  • Safety Features: Includes emergency power cut-off and tether management mechanisms
Technical Specifications

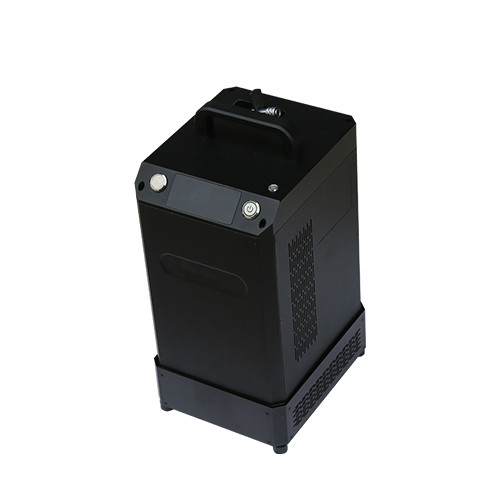

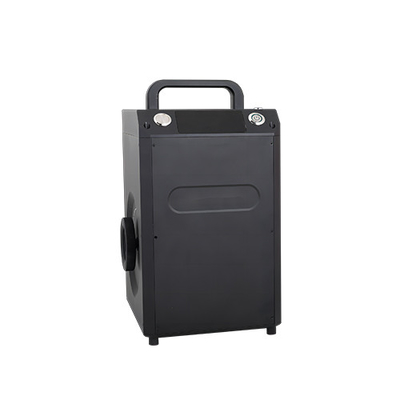

Ground Tethered Station
Specification Value
Product size 260 × 230 × 148 mm
Product weight 4kg
Rated power 500W
Cable length 60m
Wire collection method Manual + automatic
Working temperature -20℃ to +50℃
Input interface Supports 12S, 6S batteries and 220V AC input

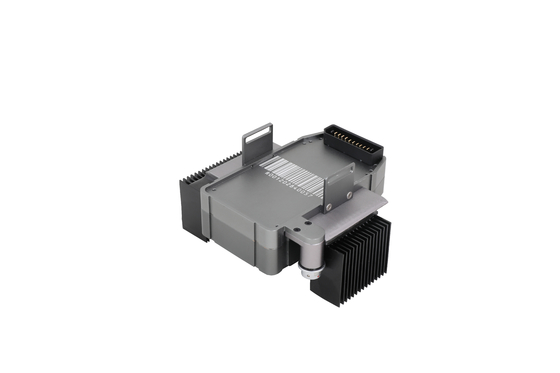

Airborne Module
Specification Value
Airborne size 109 × 92 × 58 mm
Airborne weight 179g
Rated power 500W
Heat dissipation method Left and right heat sinks, no fan
Flight altitude 60m

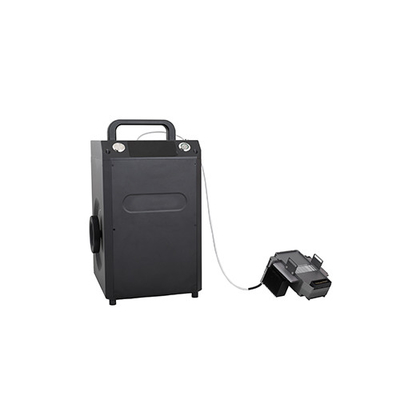

Complete Set Includes
  • Ground tethered station × 1
  • Airborne module × 1

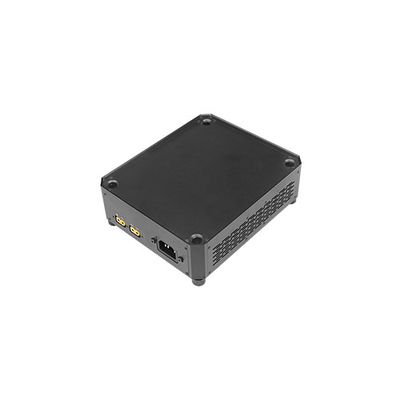

  • 220V Power adapter × 1
  • Security briefcase × 1 (size: 57cm × 35cm × 18.5cm)
500W Tethered UAV Systems Weather Resistant With Robust Construction 0
Our Services
  • 1 Year Warranty included for all purchases
  • 14-day return policy for replacements or refunds (contact required before return)
  • Defective items within 3 months replaced at no extra charge
  • Defective items after 3 months replaced with shipping fee responsibility
500W Tethered UAV Systems Weather Resistant With Robust Construction 1
Frequently Asked Questions
Q1: Do you support OEM/ODM?
A1: Yes. We can print your logo on the product.
Q2: About samples
A2: Samples ready within 7 days (10-20 days for OEM/ODM). Sample fee and shipping charged.
Q3: What is the delivery time?
A3: Regular orders ship within 15 days, OEM/ODM within 25-45 days (quantity dependent).
Q4: What is the minimum order quantity?
A4: No MOQ for wholesale (1 piece accepted), including OEM/ODM.
Q5: What are your payment terms?
A5: L/C.TT100%.
Q6: Can you reduce the shipping cost?
A6: We always choose the most economical shipping option available.
Q7: Return policy
A7: Contact us within 7 days for replacements. Items must be in original condition.
500W Tethered UAV Systems Weather Resistant With Robust Construction 2
