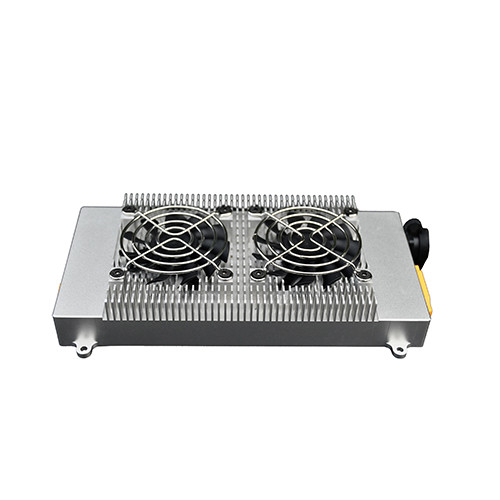

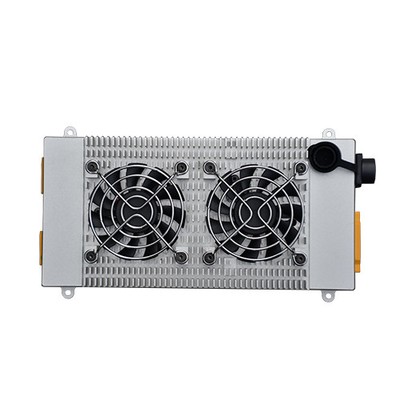

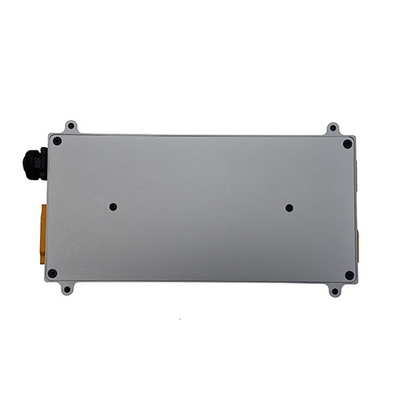

Durable Tethered Drone Systems 2500W Onboard Module High Power Tethered Power System

Durable Tethered Drone Systems 2500W Onboard Module High Power Tethered Power System

Brand Name: GS
MOQ: 1
Price: 1$,Negotiable
Payment Terms: T/T
Supply Ability: 100
Detail Information
External Dimensions:
188×100×32mm
Shell Material:
Aviation Aluminum Alloy
Weight:
532g
Rated Power:
1.5kw / 2.5kw
Load Interface Type:
XT60
Load Interface Output Voltage:
24V/48V
Battery Input Interface Type(BAT IN):
XT90
Battery Input Interface Voltage:
24V/48V
Battery Output Interface Type(BAT OUT):
XT90
Battery Output Interface Voltage:
24V/48V
Working Temp.:
-20°C To 60°C
Highlight:

Durable Tethered Drone Systems

,

Durable Tethered Power System

,

2500W Tethered Drone Systems

Product Description
6S/12S Tethered UAV Systems 2500W Onboard Module High Power Durable
Product Specifications
Attribute Value
External dimensions 188×100×32mm
Shell material aviation aluminum alloy
Weight 532g
Rated power 1.5kw / 2.5kw

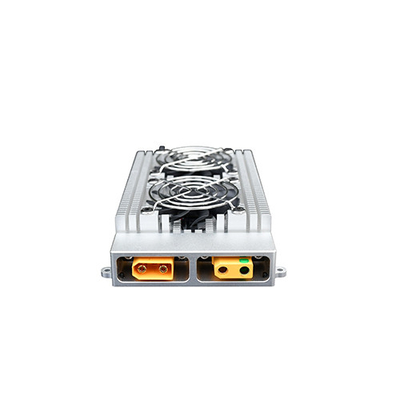

Load Interface Type XT60
Load Interface Output Voltage 24V/48V
Battery Input Interface Type (BAT IN) XT90
Battery Input Interface Voltage 24V/48V
Battery Output Interface Type (BAT OUT) XT90
Battery Output Interface Voltage 24V/48V
Working Temp. -20°C to 60°C
Product Description

6S/12S Tethered UAV system 2500W onboard module - A high-power tethered drone system designed for extended operations without reliance on onboard battery life.

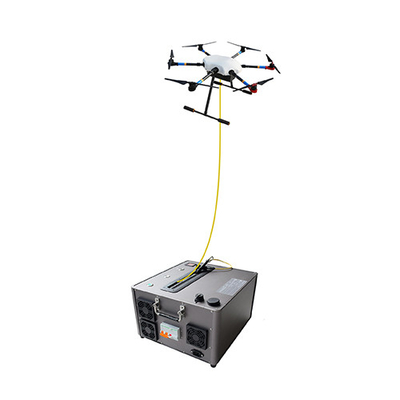

  • Tethered System: UAV physically connected to a ground station via power and data tether for extended flight times and secure data transmission.
  • 6S/12S Configuration:
    • 6S: 6 cells in series (22.2V nominal voltage)
    • 12S: 12 cells in series (44.4V nominal voltage)
  • 2500W Onboard Module: Provides 2500 watts power capacity for UAV operation.
Durable Tethered Drone Systems 2500W Onboard Module High Power Tethered Power System 0
Key Features
  • Comprehensive protection: overcurrent, overvoltage, short circuit, and overtemperature
  • Plug-and-play operation with no need to change flight battery
  • Automatic switch to drone battery when tethered power supply is interrupted
