| Brand Name: | GS |
| Model Number: | SF-80X-150M30T |
| MOQ: | 1 |
| Price: | 1$,Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 |
| Attribute | Value |
|---|---|
| Folding size of UAV | 820mm × 940mm × 880mm |
| Diagonal motor wheelbase | 1790mm |
| Empty weight | 19kg (without tethered battery) |
| Maximum net load | 20kg (excluding tethered power supply and cable weight) |
| Tethered power consumption | Ground power supply: 10kw, 8.5kw airborne end |
| RTK position accuracy | 1cm+1ppm (horizontal), 1.5cm+1ppm (vertical) |
| Maximum wind speed | Level 6, 13.8m/s |
| Additional configurations | Lighting, shouting, throwing, spraying capabilities |
| Size of mooring box | 500mm × 480mm × 460mm |
| Equipment weight | 50 + 0.5 kg |
| Cable specifications | ≥220m length, ≤6mm diameter, contains optical fiber |
| Output power and voltage | Adjustable 20-30kw, voltage 800-1000vdc |
| Take-up and pay-off system | Torque can be adjusted automatically in real time |
| Onboard module size | 271mm × 168mm × 56mm |
| Onboard module weight | 3.3 kg + 200 g |

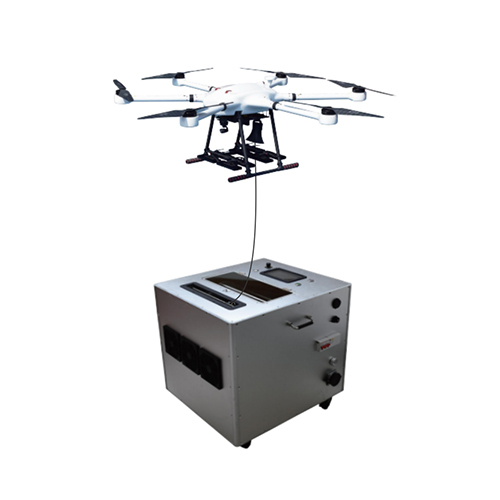

The AF-AP02 is a multi-purpose unmanned aerial vehicle (UAV). The UAV consists of a fuselage, an onboard module, and a ground tethered power supply box. The aircraft is equipped with a tethered onboard module, which connects to the ground tethered power supply station via a custom high-voltage cable to obtain a stable power supply, thereby overcoming battery capacity limitations and highlighting its long-term hovering capability, with a hovering time of over 8 hours. When tethered, the payload is 10 kilograms, and the hovering altitude can reach 200 meters. This model is particularly suitable for carrying emergency equipment such as communication base stations. Additionally, the drone can be powered by a dual-battery system, achieving a maximum flight time of 75 minutes without a payload and an effective flight time of 40 minutes when carrying a 10-kilogram payload, making it suitable for use as a transport drone.
The drone is easy to operate, and can optionally support various small devices, such as communication relay megaphones, floodlights, throwers, single-light/dual-light/triple-light cameras, etc., to meet the needs of different tasks.
Key applications include:
A1: Yes. We can print your logo on the product.
A2: Samples ready in 7 days (10-20 days for OEM/ODM). Sample fee and shipping apply.
A3: Regular orders ship within 15 days; OEM/ODM within 25-45 days (quantity dependent).
A4: No MOQ - wholesale orders accepted from 1 piece, including OEM/ODM.
A5: L/C or 100% TT payment.
A6: We always select the most economical shipping option. You may choose your preferred carrier.
A7: Contact us within 7 days of receipt for replacements. Items must be in original condition; return shipping at your expense.
