| Brand Name: | GS |
| Model Number: | SF-90X-100M |
| MOQ: | 1 |
| Price: | 1$,Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 |
| Product Material | Carbon fiber + aviation aluminum alloy |
| Rotor Number | 6-rotor |
| Wheelbase | 1920 or less |
| Expansion Size (mm) | 1780 * 2070 * 800 |
| Folding Size (mm) | 1000 * 1250 * 800 |
| Air Weight | ≤18.5KG (excluding battery weight) |
| Maximum Load | ≤30KG |
| Maximum Take-off Weight | ≤58KG |
| Positioning System | GPS positioning |
| Power Battery | 14S 28000mAh*1 |
| Remote Control Unit | Has one pod, display 5.5" screen |
| Safe Wind Speed | ≤ Lv. 6 |
| Operating Temperature | -20℃ to 50℃ |
| Fuselage Protection Class | IP65 |
| Nozzle Pressure | 12Mpab |
| Injection Distance | More than 10m |
| Pump Power | 7.5 KW |
| Pipe Height | ≥100m |
| Mooring Power | 12kw |
| Tether Length | 120m |

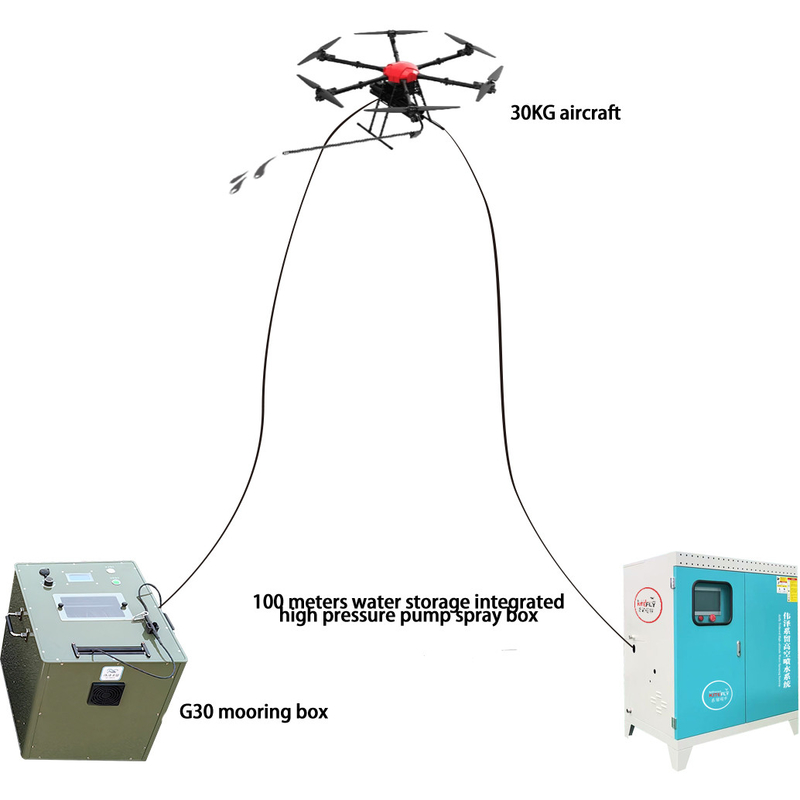

The Tethered UAV Injection System SF-90X-100M features a six-rotor tethered jet system composed of three main components: tethered power supply system, integrated water pump system (exclusive), and large payload UAV.
This advanced system is designed for curtain wall cleaning and spraying applications, effectively replacing traditional "spider man" methods. It significantly improves efficiency and safety for facade maintenance of urban tall buildings, power plants, and chemical plants.
The innovative tethered system provides extended endurance compared to traditional water systems, solving the challenge of infinite endurance for the last 100m of operation. Our mooring solutions offer power supply systems for large load water system cleaning platforms, with height capabilities from 50m to 300m and power options from 18kw to 60kw to meet diverse customer requirements.
