| Brand Name: | GS |
| Model Number: | SF-80X-200M20T |
| MOQ: | 1 |
| Price: | 1$,Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 |
| Attribute | Value |
|---|---|
| Folding size of UAV | 820mm × 940mm × 880mm |
| Diagonal motor wheelbase | 1790mm |
| Empty weight | 19kg (without tethered battery) |
| Maximum net load | 20kg (excluding tethered power supply and cable weight) |
| Tethered power consumption | Ground power supply: 10kw | 8.5kw airborne end |
| RTK position accuracy | 1cm+1ppm (horizontal) | 1.5cm+1ppm (vertical) |
| Maximum wind speed | Level 6, 13.8m/s |
| Other configurations | Lighting, Shouting, throwing, spraying, etc. |
| Size of mooring box | 500mm × 480mm × 460mm |
| Equipment weight | 50 + 0.5 kg |
| Cable specifications | Length ≥220m | Diameter ≤6mm | Contains optical fiber |
| Output power and voltage | Adjustable 20-30kw, voltage 800-1000vdc |
| Take-up and pay-off system | Torque can be adjusted automatically in real time |
| Onboard module size | 271mm × 168mm × 56mm |
| Onboard module weight | 3.3 kg + 200 g |

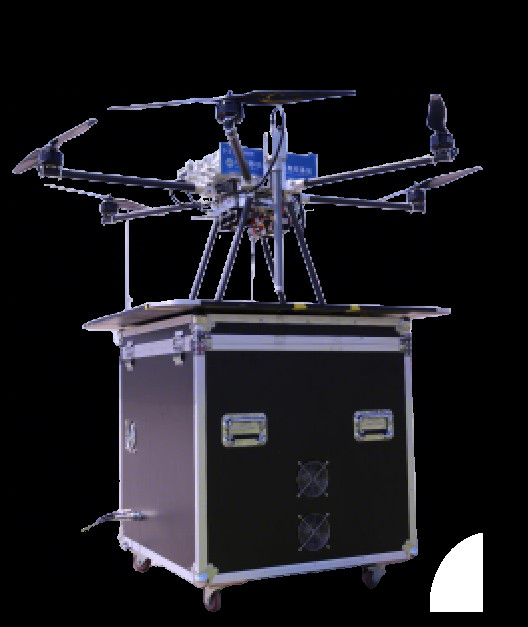

The tethered UAV relay platform system consists of three main components: the UAV, tethered power supply box, and tethered airborne module. This innovative system enables continuous power supply from the ground for extended flight operations, with data transmission through optical fibers.
Featuring dual RTK functionality, this system offers exceptional wind resistance and flight stability, ensuring reliable performance for long-duration relay transmission missions. The precision positioning (1cm horizontal accuracy) makes it ideal for critical communication applications.
This tethered relay system is specifically designed for emergency signal relay scenarios, with established partnerships with major telecom operators including China Mobile, China Unicom, and China Telecom. It supports flexible payload configurations including telecom equipment, military radios, and short-wave communication devices.
Yes, we offer custom branding solutions including logo printing.
Standard samples available in 7 days, OEM/ODM samples in 10-20 days (sample and shipping fees apply).
Regular orders ship within 15 days, OEM/ODM orders in 25-45 days (quantity dependent). We provide timely updates for any delays.
No MOQ - wholesale orders accepted starting from 1 unit, including OEM/ODM.
We accept L/C and 100% TT payments.
We always select the most cost-effective shipping option. Customers may arrange their own shipping if preferred.
Returns must be initiated within 7 days of receipt. Items must be in original condition, with return shipping at customer's expense.
