TORQ M40C30 50KV 19KW Brushless DC Motor with 70kg Maximum Thrust for Manned Drones

Brand Name:	GS
Model Number:	M40C30 V2.1 50KV
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Motor Model:

M40C30 IPE V2.1

Motor Size:

D:152 X65 Mm

Propeller Mounting Holes:

D:50 M6x6

Shaft Diameter:

IN: 15 Mm

Bearing:

HR30202]/3202A-2RZTN

Cable Length:

150 Mm (extended Enameled Wires)

Rotor Balance:

≤20 Mg

Motor Balance:

≤30 Mg

Motor Mounting Holes:

D:50 M6x6

Disruptive Test:

500 V

Highlight:

50KV Brushless DC Motor

50KV Drone DC Motor

Product Description

TORQ M40C30 50KV v2.1 Brushless DC Motor Manned Drone

Product Overview

The M40C30 19KW large brushless motor is engineered for paramotor paragliders and cargo transport applications. Built with industrial-grade components, this motor is ideal for unmanned VTOL/Multi-Copter (Hexa, Octo) configurations and Personal Aerial Vehicles (PAV).

Technical Specifications

RPM/V (KV Rating)	50 KV
Nominal Voltage	24S LiPo Battery
No Load Current	2.3A/30V
Internal Resistance	20.3mΩ
Motor Weight	2789 g
Packaged Weight & Dimensions	4008g (260×210×120 mm)
Maximum Current	197.2 A
Maximum Power	19089W
Maximum Thrust	70 kg
Maximum Torque	47.1 Nm
Recommended ESC	MAD AMPX 200A (12-24S)
Recommended Propellers	47×13

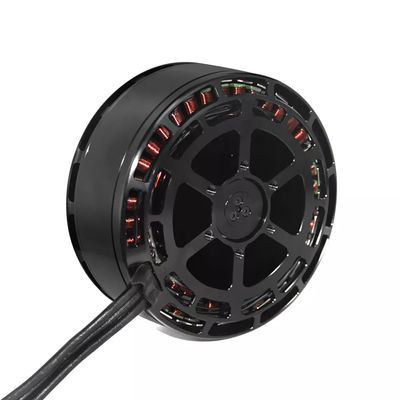

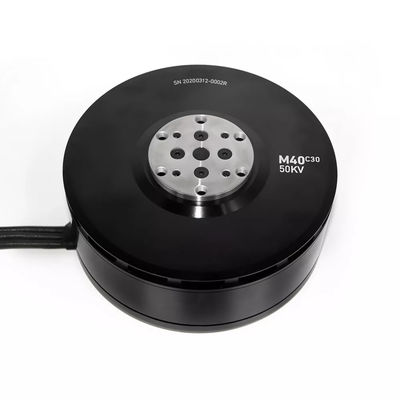

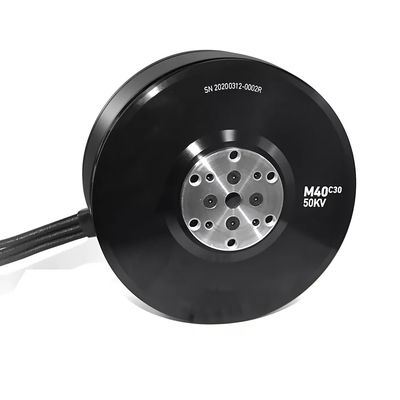

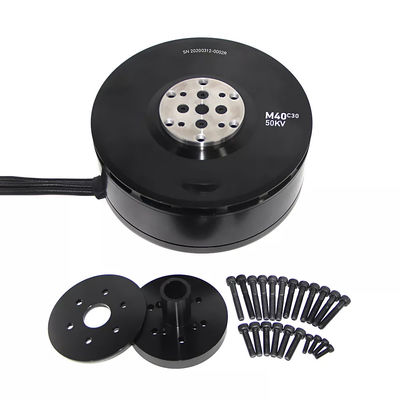

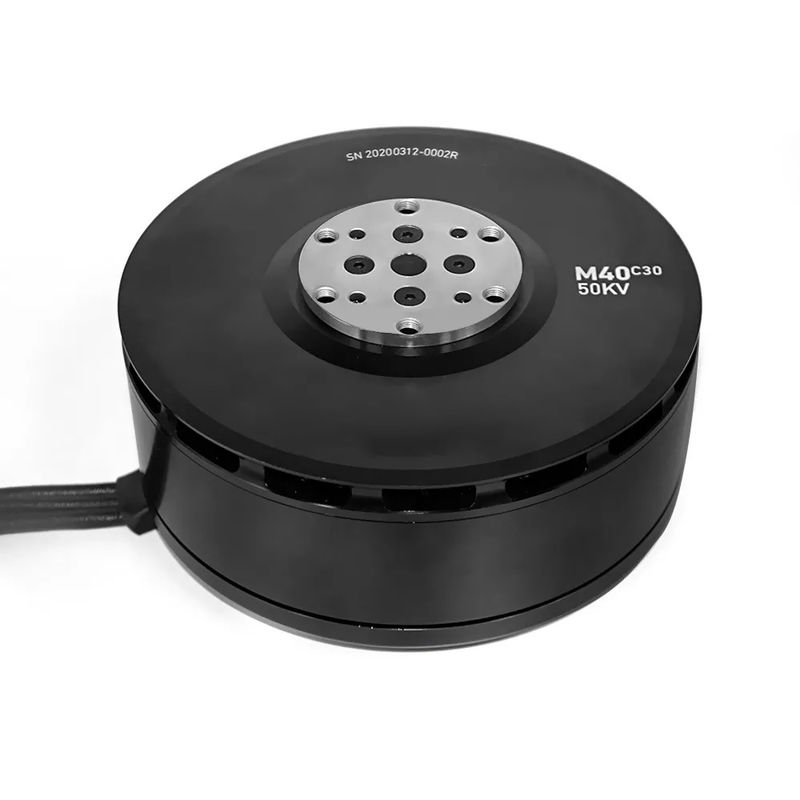

Product Images

Warranty & Services

1 Year Warranty: Buy with confidence
14-Day Return Policy: If unsatisfied with your item, return within 14 days for replacement or refund (contact required before return)
3-Month Defective Replacement: If item is defective within 3 months, we provide replacement without extra charge or refund after receiving defective item
Post-3-Month Support: Defective items can still be returned for replacement, but customer pays shipping fees

Frequently Asked Questions

Q1: Do you support OEM/ODM?

A1: Yes. We can print your logo on the product.

Q2: About samples.

A2: Under normal circumstances, samples will be ready within 7 days, and 10-20 days for OEM/ODM orders. Sample fee and shipping will be charged.

Q3: What is the delivery time?

A3: For regular orders, we can ship within 15 days, for OEM/ODM, we can ship within 25-45 days (depending on quantity). In case of delays, we will notify you in advance.

Q4: What is the minimum order quantity?

A4: No MOQ for wholesale (1 piece accepted), including OEM/ODM.

Q5: What are your payment terms?

A5: L/C, TT 100%.

Q6: Can you reduce the shipping cost?

A6: We always choose the cheapest and safest express options. While we have shipping partnerships, we cannot further reduce costs. Customers may arrange their own shipping if preferred.

Q7: Return policy.

A7: To replace received items, contact us within 7 days after delivery. Returned items must be in original condition, and customer pays additional shipping.
