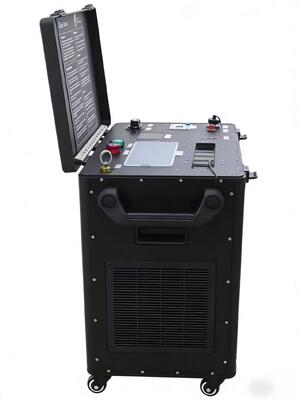

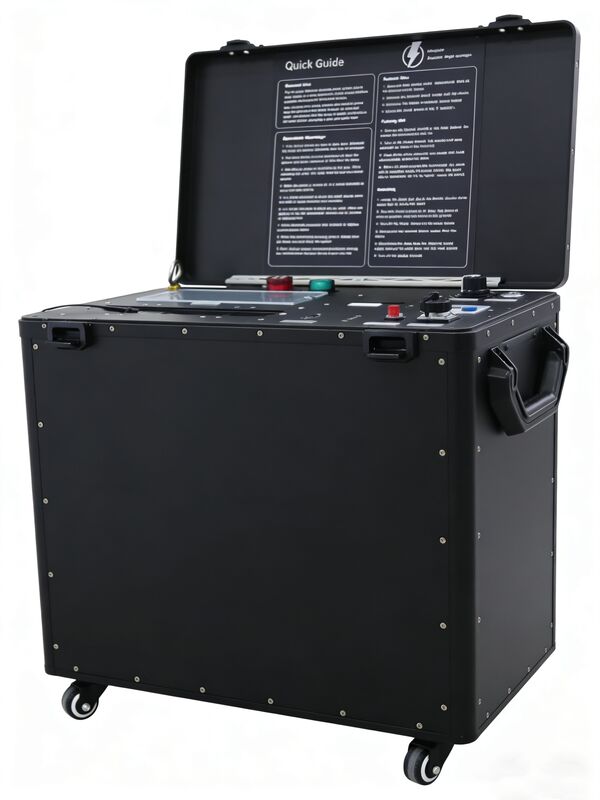

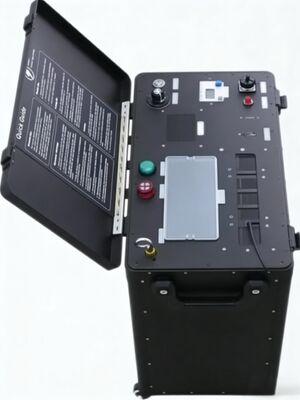

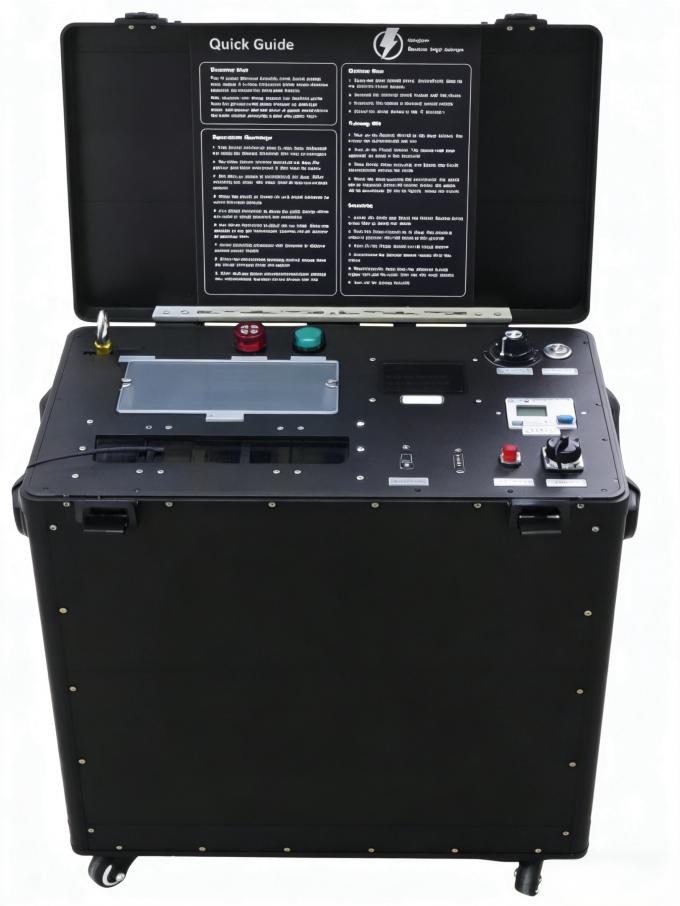

LG55-LG70 UAV Tethered Ground Station
This 750V high-power tethered power supply is specifically designed for extended flight operations of unmanned aerial vehicles (UAVs). With an output power of up to 7kW, automatic voltage compensation, and multi-level safety protection features, it delivers stable, secure, and continuous power supply for industrial-grade UAV applications such as surveillance, communication relay, and inspection. Its compact size ensures portability, making it an ideal solution for executing long-endurance flight missions.
Key Features
- Automatic voltage compensation, automatic overcurrent protection
- Reverse electromotive force protection for safer landing
- Isolated design prevents electric shock
- Integrated telescopic pole keeps cables off the ground to prevent crashes
- Low current alarm, “base station 485 communication with real-time data display”
|
size |
46x26x41.5cm |
| weight | 24kg |
| input | 220V AC +10%50Hz/60Hz |
| height | 120m/200m |
FAQ
Q1:What is the rated input for this tethered power supply system?
220V AC ±10%, compatible with both 50Hz and 60Hz frequencies.
Q2:What are the output power and voltage?
The system outputs 750V DC with optional power ratings of 5.5 kW or 7 kW.
Q3:What is the maximum supported flight altitude?
Supports tethered flight altitudes of 120 meters and 200 meters.
Q4:What safety protections are included?
Features automatic voltage compensation, overcurrent protection, back-EMF protection, isolation design to prevent electric shock, and low-current alarm to prevent motor damage.
Q5:Is cable management automated?
Yes, the built-in automatic lifting pole prevents the cable from dragging on the ground.
